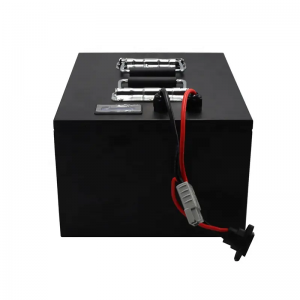

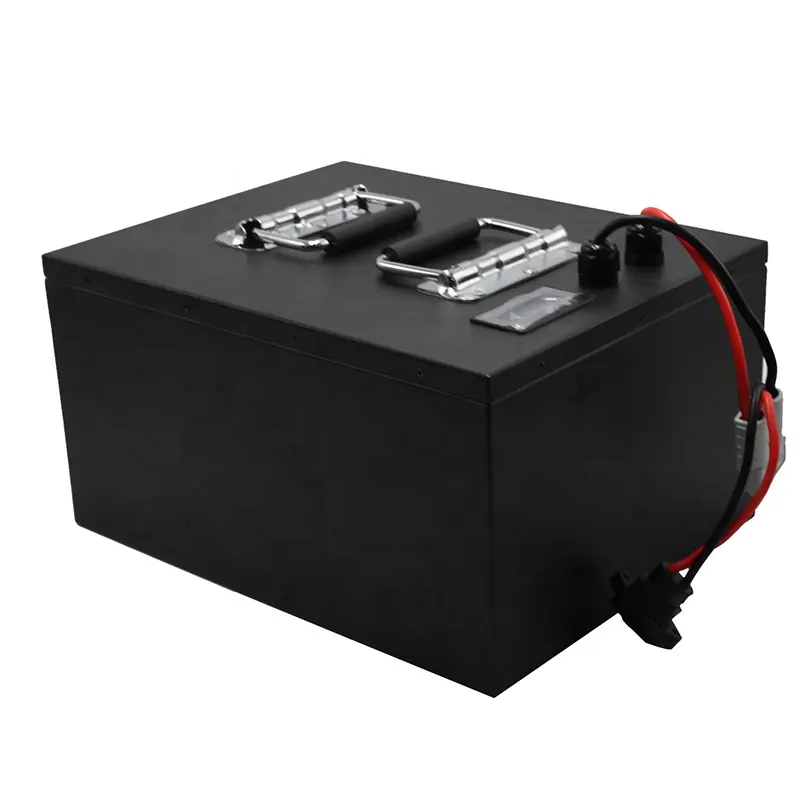

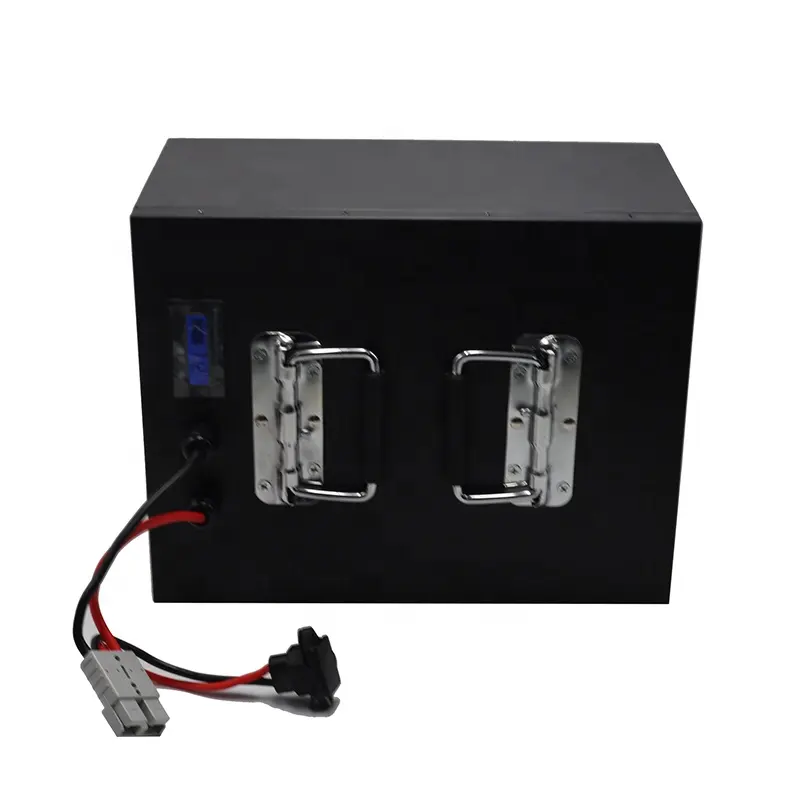

EV avtomobillari uchun moslashtirilgan LiFePO4 batareya to'plami 72v 60ah elektr avtomobil akkumulyatori lityum-ion to'plami

2023-06-06 02:13

Texnik xususiyatlari

Brendning nomiHAMMA BIRIDA
ModelAIN7260
Kafolat5 yil
Nominal kuchlanish76,8 V
Nominal sig'im[email protected]/customize
Energiya4416Wh
Ichki qarshilik≤50mΩ
Sikl hayoti4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
O'z-o'zidan tushirish253,5% oyiga 25 at da
Maksimal zaryadlash kuchlanishi87.6 V
Zaryadlash rejimiAt 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Zaryadlovchi oqim30A
Maksimal zaryadlovchi oqim60A
Zaryadsizlanadigan oqim30A
Max. discharge Continuous Current60A
Maksimal impuls oqimi120A(<3S)
Chiqib ketish quvvati60V
Zaryadlash harorati0 ℃ dan 45 ℃ gacha (32 113 dan 113 ℉ gacha) @ 60 ± 25% nisbiy namlik
Bo'shatish harorati-20 ℃ dan 60 ℃ (-4 140 dan 140 ℉ gacha) @ 60 ± 25% nisbiy namlik
Saqlash harorati0 ℃ dan 45 ℃ gacha (32 113 dan 113 ℉ gacha) @ 60 ± 25% nisbiy namlik
Suv changiga qarshilikIP55
Hujayra va formatLFP  60AH 24S1P/customize
KosonMetal Case
Hajmi (L * W * H * TH)sozlamoq
Og'irligi50kg
TerminalM6 or Anderson or another bolt screw
Peak discharge current BMS60A
High temp port. Low temp port.over charge port. over discharge port.
Zaryadlash usuliCC / CV
Terminal TypeM6 or Anderson or another bolt screw/customize
SertifikatCE, RoHS ,MSDS and UN38.3 certification
applicationsGolf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric
Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Eslatma

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Ilova

Bizning fabrikamiz

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Paket va etkazib berish

Qadoqlash

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

yuk tashish; yetkazib berish

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



Tss

Savol: Qanday qilib to'lashim kerak? Siz qanday to'lov usullarini qabul qilasiz?
A: T/T, PayPal, Western Union.

Savol: Namunaviy buyurtma qabul qilinadimi?
Javob: Ha, batareyalarning aksariyati uchun sinov sifatini namunaviy buyurtmalar oqilona va qabul qilinadi.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Batareya to'kilishi/payvandlanishi kabi etkazilgan shikastlanishlar uchun, zaryadlash natijasida BMS himoyalanmagan batareyalar to'plami.

Eslatma: Biz batareya ishlab chiqaruvchilarmiz. Barcha mahsulotlar chakana savdo -sotiqni qo'llab -quvvatlamaydi, biz faqat B2B biznesini qilamiz, mahsulot narxlari uchun biz bilan bog'laning!
