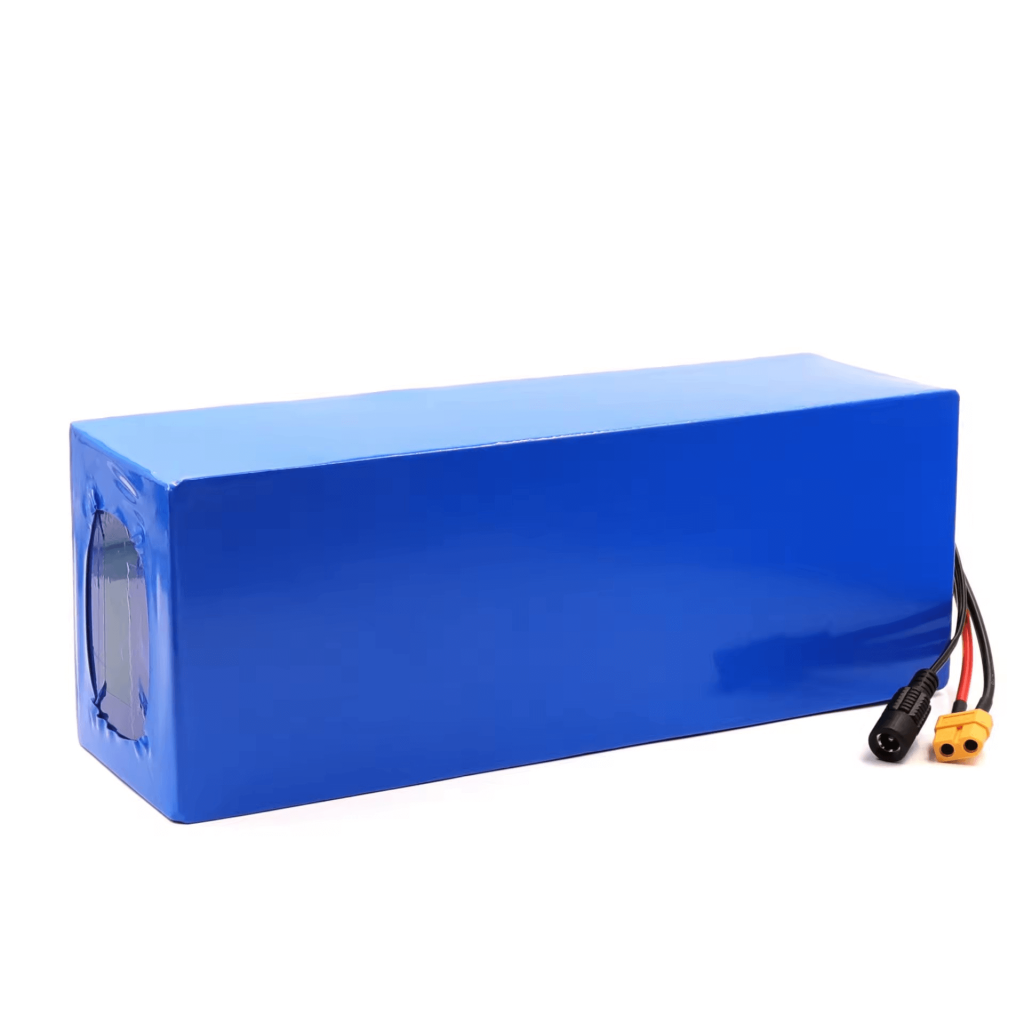

E-Bike 36V 15AH Lityum Li-ion batareyasi elektr velosiped uchun 200W dan 500W Dvigatel

2024-05-30 06:38

SPECIFICATIONS
Yo'q.	Elementlar	Texnik xususiyatlari	Izoh

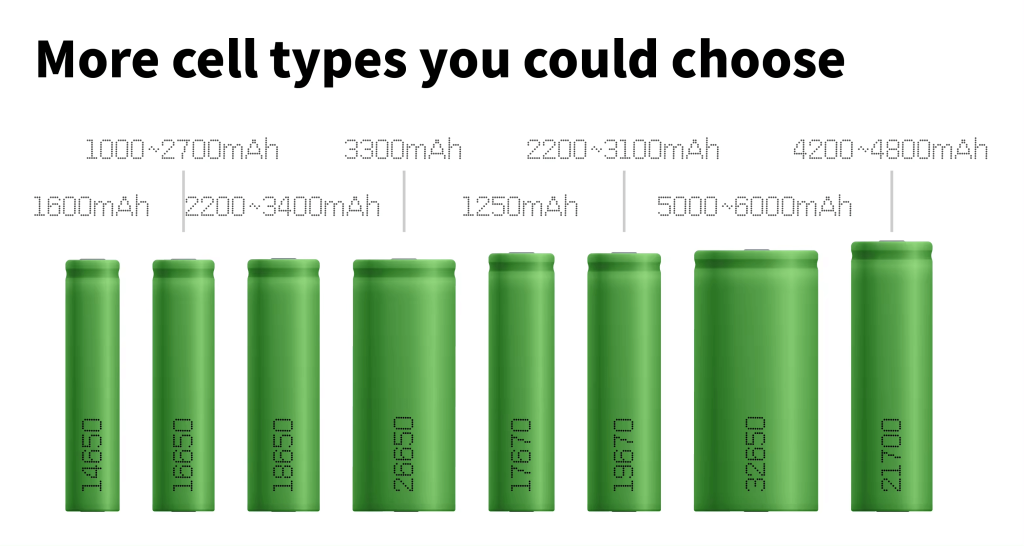

1	Hujayra turi	18650, 2500mAh,3.7V

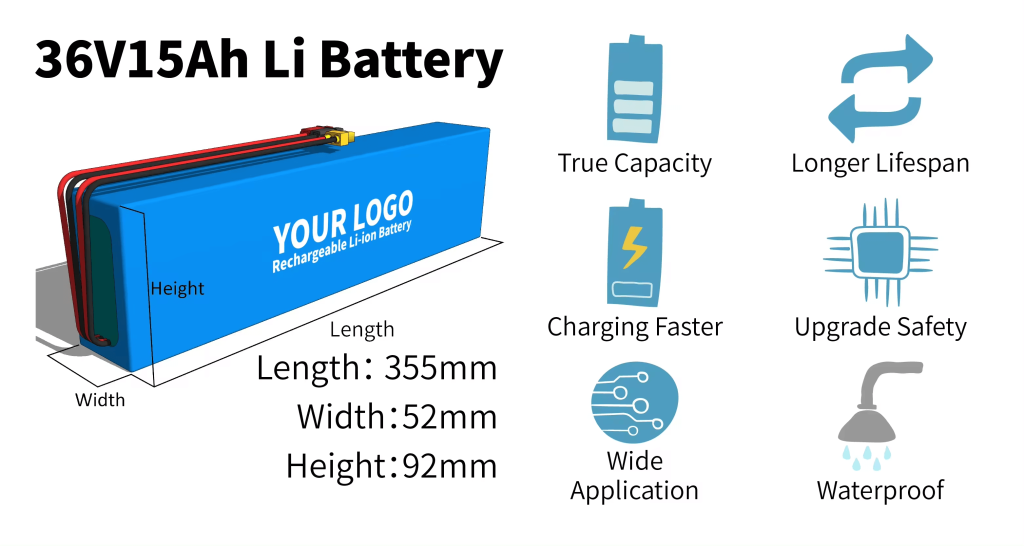

2	Hajmi	355×92×52±2mm	Length×Width×Height
3	Texnik xususiyatlari	36V15Ah
4	Typical Rated capacity	15Ah	0.2C Discharge
5	Minimal imkoniyatlar	14.4Ah	0.2C Discharge
6	Energiya	540Wh
7	MAX Charge voltage	42±0.2V
8	Standart zaryad	5.2A	CC/CV, 0.2C5A, 42V
9	End-of-charge Current	300mA	0.02C5A
10	Standart tushirish	7.5A	CC, 0.5C5A, 28V
11	Maksimal zaryadlash oqimi	5A
12	Maksimal tushirish oqimi	20A
13	Bo'shatish zaryadsizlanishi	≥28V
14	Nominal kuchlanish	36V/pack
15	Internal resistant	≤110mΩ
16	Over current protection current	100±10A
17	Temperature range for storage	1 oydan kam	-20~45°℃
		less than 6 month	-20~35°℃
18	Operating temperature range	Bo'shatish	-20 ~ 50 ℃
		Zaryadlash	0 ~ 50 ℃
19	Sikl hayoti	≥500 cycles

Bizning afzalliklarimiz

Qualified Cells

UL,IEC certified cells with cycle life 3000times and qualified.

Smaller Size & Low weight

Our battery is just 3/4 size of the other supplier standard size.

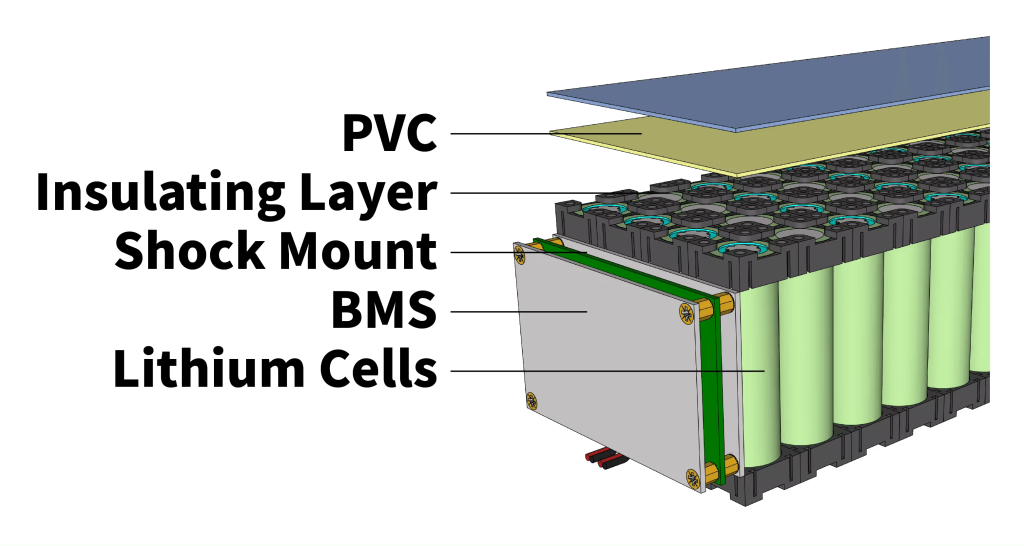

Excellent Battery Management System

Core components are worldwide famous brand to ensure high accuracy.

Excellent Craft

Neat, tidy and protected wiring to avoid wires dropped. All cells with holder improve heat dissipation to lower down the cell temperature and then prolong life-span.

Quality Control For Battery

Perfect Cells

All from China famous branded cells partners.

Cell Grouping

Strict Cell Grouping standard, all cells from one batch, the difference of Cell Internal Resistance: within 1mΩ, voltage: within 3mv to ensure the pack has best consistency.

Automatic Machinery

Cells are assembled with 3kw fully automatic laser welding machines or high power automatic spot welding machines to ensure quality reliability.

BMS Testing

All BMS are tested, specially to make sure the BMS has low sleeping consumption current.

100% Pack Testing

All battery packs are 100% Fully Tested(Fully Discharge--Fully Charge--Fully Discharge--80% Charged) before package,and all test reports are stored.Unique Tracing No.

Ilova

Lithium Battery Main Applications
Elektr qo'zg'atuvchi dasturlar	Dvigatelni ishga tushirish batareyasi; Sekin tezlikda avtomobil; Intellektual robotlar; Elektr velosiped / mototsikl / skuter; Golf aravachalari/aravalar/ diqqatga sazovor joylar avtomobil; Elektr asboblari.
Energiyani saqlash	quyosh va shamol energiyasi tizimi; shahar yoqish / o'chirish tarmog'i; jamoa va oila, RV Caravan, Dengiz yaxtalari.
Zaxira tizimi va UPS	telekom bazasi, CATV-tizim, kompyuter server markazi, tibbiy asboblar, harbiy texnika.
Boshqa dasturlar	xavfsizlik va elektronika; mobil POS, kon chiroqi / mash'al / LED chiroq / favqulodda yorug'lik.

Paket va etkazib berish



Tss

1,Q: What's the main product ?

Javob: Qayta zaryadlanadigan batareya. Li-ion, Lipo batareyasi va quvvat batareyasi to'plami.

2, Savol: ortiqcha to'lov nima?

Javob: Zaryad olgandan so'ng, batareyalarning dastlabki holatini va quvvatini sinab ko'ring. 3C oqimida 10.0Vgacha quvvatlang, so'ngra CV rejimida 0,01C ga qadar quvvatlang. Batareya ko'rinishidagi o'zgarishlarni kuzating.

3, Savol: Bo'shatish nima?

Javob: Zaryad olgandan so'ng, batareyalarning dastlabki holatini tekshiring. Batareyalar normal bo'lsa, 0,5C da 0V ga tushiring. Batareya ko'rinishidagi o'zgarishlarni kuzating.

4, Savol: Namunaviy buyurtma bera olamanmi?

Javob: Ha, biz sifatni tekshirish va tekshirish uchun namunaviy buyurtmani qabul qilamiz. Batareyalar talabga muvofiq ishlab chiqarilishi mumkin.

5, Savol: MOQ chegarangiz bormi?

Javob: Ha, bizda ommaviy ishlab chiqarish uchun MOQ chegarasi mavjud, ammo bu batareyaning modeliga bog'liq. Tafsilotlar uchun biz bilan bog'laning.

6, Q: How about the lead time?

Javob: Namunalar 5-7 ish kuni davom etadi. Ommaviy ishlab chiqarish 25-30 kun davom etadi. Bu miqdorga bog'liq.

7, Savol: Yuk tashish va etkazib berish muddati qanday?

Javob: Odatda, batareyalar DHL, TNT, FedEx va UPS kabi Express orqali yuboriladi, etkazib berish muddati 3-5 ish kuni. Yoki DDP xizmati, etkazib berish muddati 11-15 ish kuni. Shuningdek, aviakompaniya va dengizga jo'natmalar mavjud.

8, Savol: Sotishdan keyingi xizmat haqida nima deyish mumkin?

Javob: Biz sizga 1 yillik kafolatni taqdim etamiz. Agar biron bir muammo bo'lsa, iltimos, bizga xabar bering, biz sizga ijobiy echimlarni taklif qilamiz.
