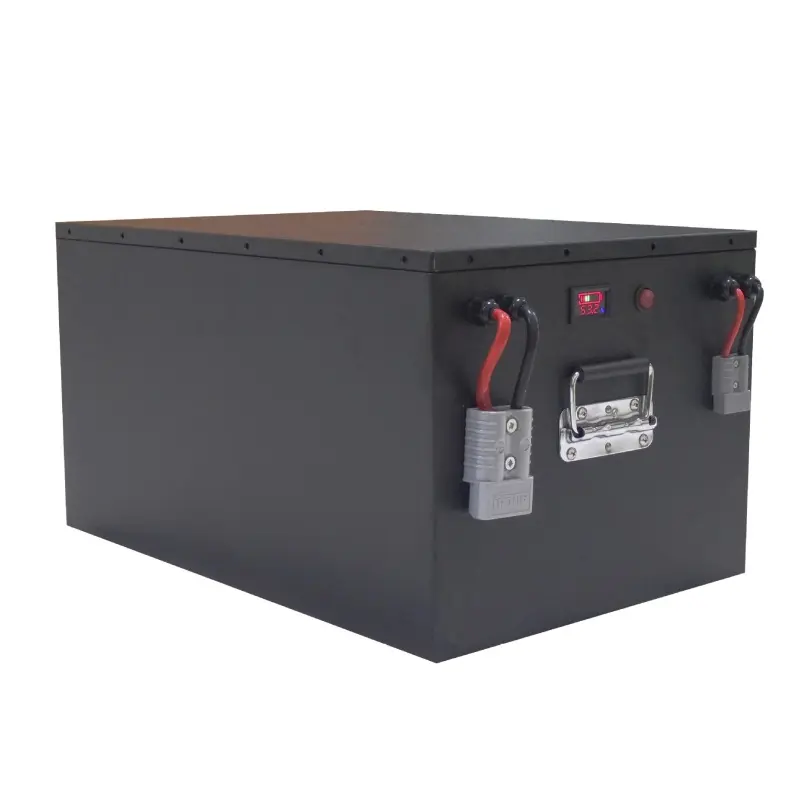

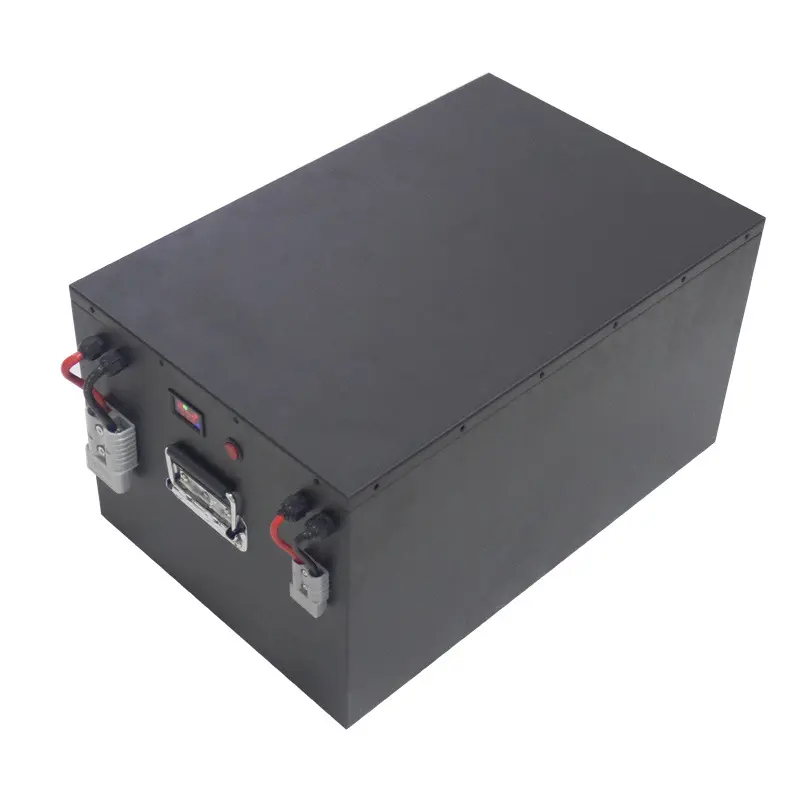

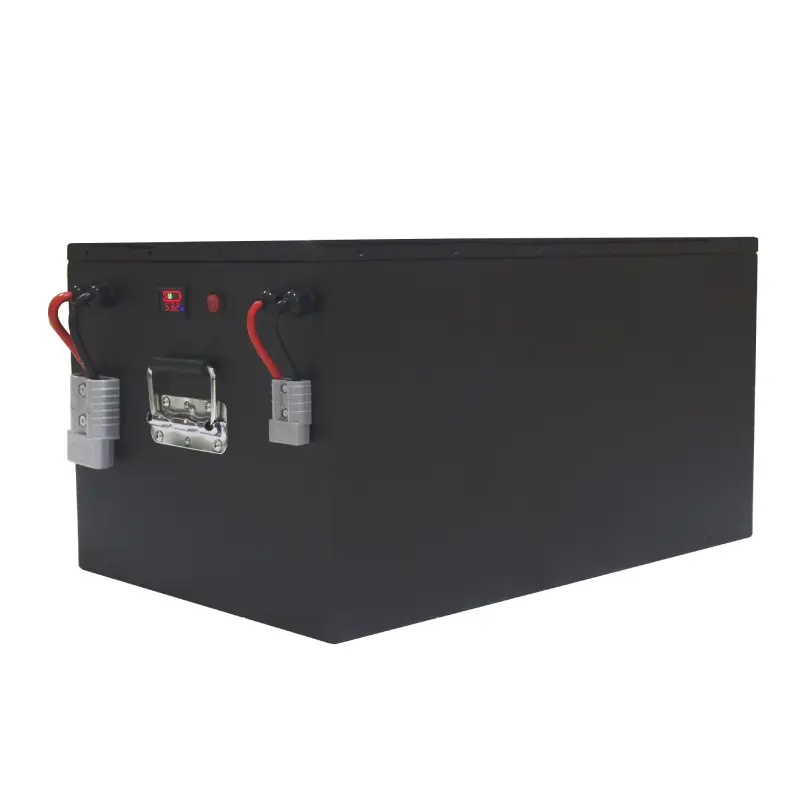

Lifepo4 lityum temir fosfat batareyasi 72V 50Ah Ebike mototsikl RV golf aravasi uchun

2023-06-01 02:15

Texnik xususiyatlari

Nominal kuchlanish	72V
Nominal sig'im	50A
Ichki qarshilik	≤220mŌ
Sikl hayoti	2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod
End of charge Voltage	14.6V
End of charge Current	100mA
Max.Continuous charge current	50A
Zaryadlash usuli	0.2C (0.5A) CC/CV
End of discharge Voltage	9.2V
Max. Pluse Discharge Current	50A/10S
Charge Temp	0 ~ 45 ℃
Discharge Temp	-10~55℃
Storage Temp	-10 ~ 45 ℃
Dimension(D×W×H)	332*170*220mm
Og'irligi	≤20Kg
Batareyalarni avtomatik himoya qilish tizimi o'rnatilgan	Ha

Charge plugs and Discharge connectors optional

1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without request

2.Discharge Connector: There are 12 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.

Xususiyatlari

1.Lighter weight, smaller size

2.High temperature performance

3.Extremely safe, no explosion, no fire under collision

4.Strüskiy haddan tashqari zaryadga qarshilik va zaryadni ushlab turish

5.Strong charging acceptance and quick-charging capability

6.Maintenance-free and no acid or water for maintenance in usage

7.Large capability and long life for all high power output applications

8.Environmentally friendly non-toxic, non-contaminating, no rare metal.

9.Low self-discharge and good discharge performance at low temperature

10.Excellent large current discharge performance especially in startup and climbing

OEM

We also can customize the battery 12v/24v/36v/48v/72v 100h,120ah,200ah,300ah,400ah,800ah with metal box. The size and shape are flexible according to your given size. And if necessary, we can offer a remote LCD display to monitor the battery status.
To welcome the world cooperation we accept OEM with your logo design.



 Ilova

Ilovalar

* Electric Vehicles for Commercial and Commuting * Electric Scooter * Golf Cart/ troller * Electric Mobility * Electric Motorcycle * Electric Bicycle * Electric Wheelchair * Electric Power Mower * RV (Recreational Vehicle) * AGV (Automatic Guided Vehicle) /AGV cars/ AGV robots/ Self-guided



Bizning fabrikamiz

Tss

1, Savol: AINdagi asosiy mahsulot nima?
A: Rechargeable battery. NiMH, Li-ion, Lipo battery and power battery pack.
2, Savol: ortiqcha to'lov nima?
Javob: Zaryadlangandan so'ng, batareyalarning dastlabki holati va quvvati sinovdan o'tkazildi. 3C oqimda 10,0V ga zaryadlang, so'ngra CV rejimida 0,01C ga zaryadlang.
Batareya ko'rinishidagi o'zgarishlarni kuzating.
3, Savol: Bo'shatish nima?
Javob: Zaryadlangandan so'ng, batareyalarning dastlabki holatini sinab ko'ring. Batareyalar normal bo'lganda, 0,5C da 0V gacha zaryadsizlang. O'zgarishlarni kuzating
batareyaning ko'rinishi.
4. Savol: Namunaviy buyurtma bera olamanmi?
Javob: Ha, biz sifatni tekshirish va tekshirish uchun namunaviy buyurtmani qabul qilamiz. Batareyalar talabga muvofiq ishlab chiqarilishi mumkin.
5. Savol: Sizda MOQ chegarasi bormi?
Javob: Ha, bizda ommaviy ishlab chiqarish uchun MOQ chegarasi mavjud, ammo bu batareyaning modeliga bog'liq. Tafsilotlar uchun biz bilan bog'laning.
6. Savol: Boshlanish vaqti haqida nima deyish mumkin?
Javob: Namunalar 5-7 ish kuni davom etadi. Ommaviy ishlab chiqarish 25-30 kun davom etadi. Bu miqdorga bog'liq.
7. Savol: Yuk tashish va etkazib berish muddati qanday?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. Savol: Sotishdan keyingi xizmat haqida nima deyish mumkin?
A: We will offer you 2 years guarantee. If there are any problems, please inform us, we will offer you positive solutions.
