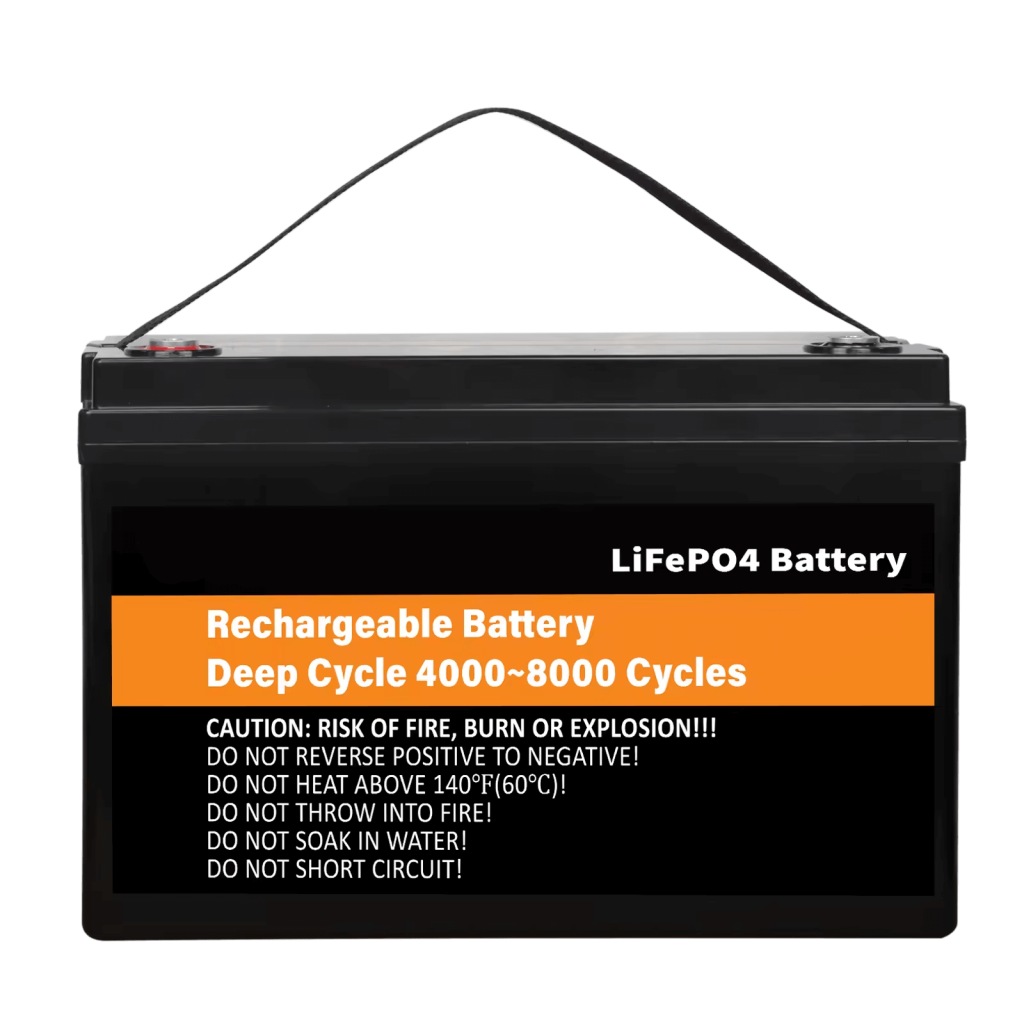

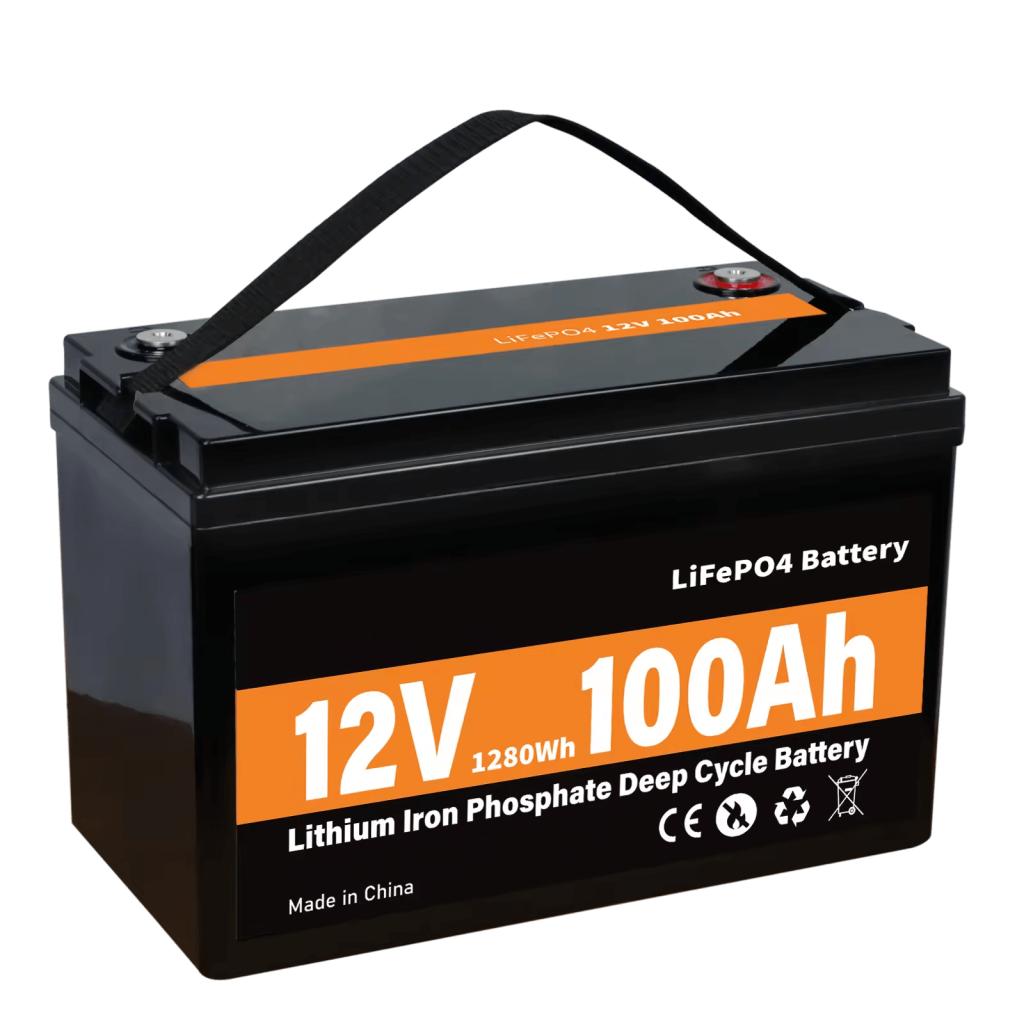

LiFePO4 Quyosh energiyasini saqlash quvvati batareyasi 12V 100Ah

2024-02-28 03:19

Texnik xususiyatlari

Overview	Grade A Lifepo4 12V 100Ah 200Ah 24V 100Ah Solar Energy Storage Battery for Home Lithium ion Battery Pack #Grade A Blade Pouch Cell #Built-in 100A BMS #LCD Capacity Display #2 Hrs Charge Up to 80%, 50A Charging Current #IP65 Rated Gives Protection Against Low Pressure Water #5-Year Warranty
Texnik xususiyatlari	BASIC SPECIFICATIONS	Model: 12V 100Ah
		Rechargeable:Yes
		Cell Type:LiFePO4 (LFP) Pouch Cell

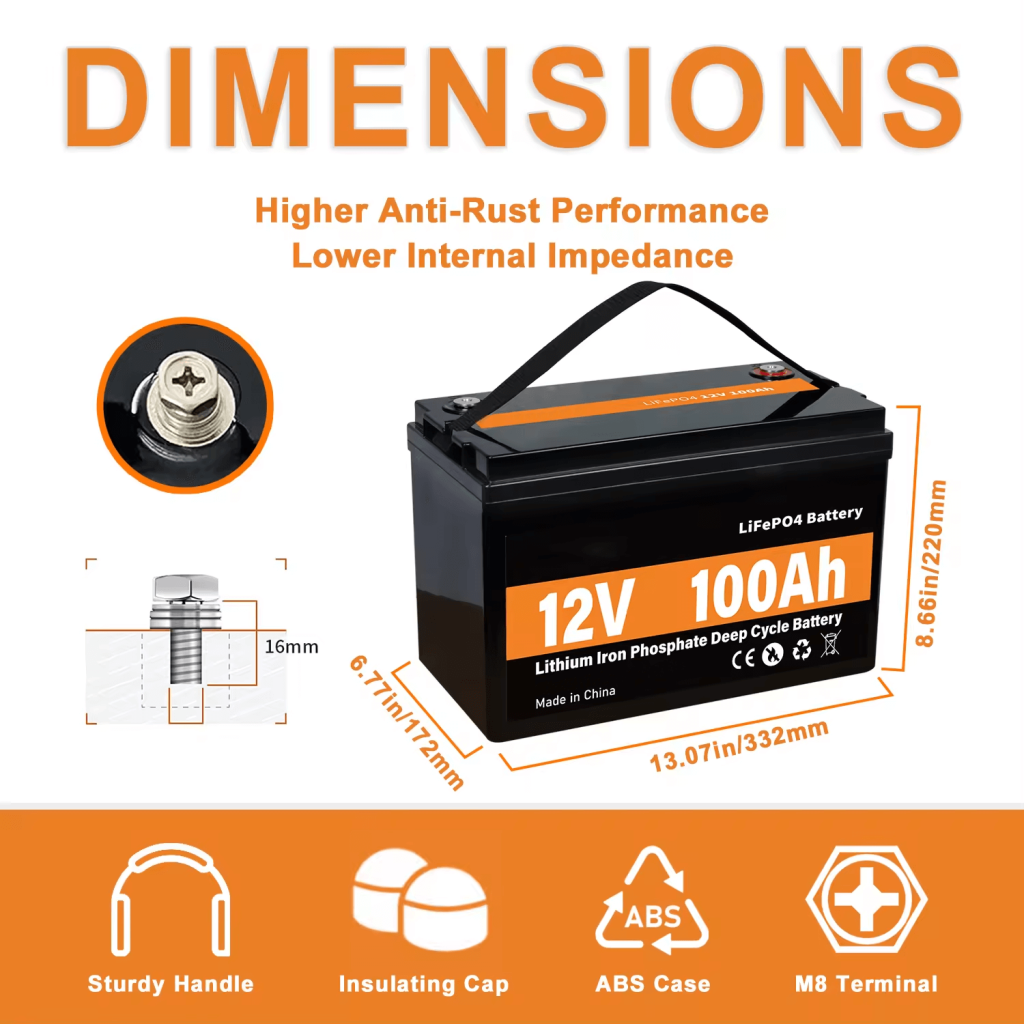

		Dimensions: L13.19 * W7.28 * H8.46 ” L335 * W185 * H215 mm
		Case Material:ABS
		Warranty:5 Years
	ELECTRICAL     SPECIFICATIONS	Nominal Voltage: 12.8V
		Nominal Capacity: 100Ah
		Nominal Energy: 1280 Wh
		Standard Charge Voltage: ≤14.6 V
		Max Charge Current: 50A
		Discharge Cut-Off Voltage: ≥10V
		Max Discharge Current: 100A
		Internal Resistance: ≤30mΩ
	PERFORMANCE SPECIFICATIONS	Cycle Life: ≥4000 Times (80%DoD)
		Service Life: 10 Years (25°C/77°F）
		Charge Temperature Range: 0~45°C (32~113°F)
		Discharge Temperature Range: -20~60°C (-4~140°F)
		Protection: IP65, Built-in BMS



In addition to the LiFePO4 battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.

Key features

1. Vehicle-grade craft, there are multiple isolation and fixing inside the battery pack, which is conducive to heat dissipation
2.  The shell is anti-aging, anti-corrosion, fireproof and waterproof

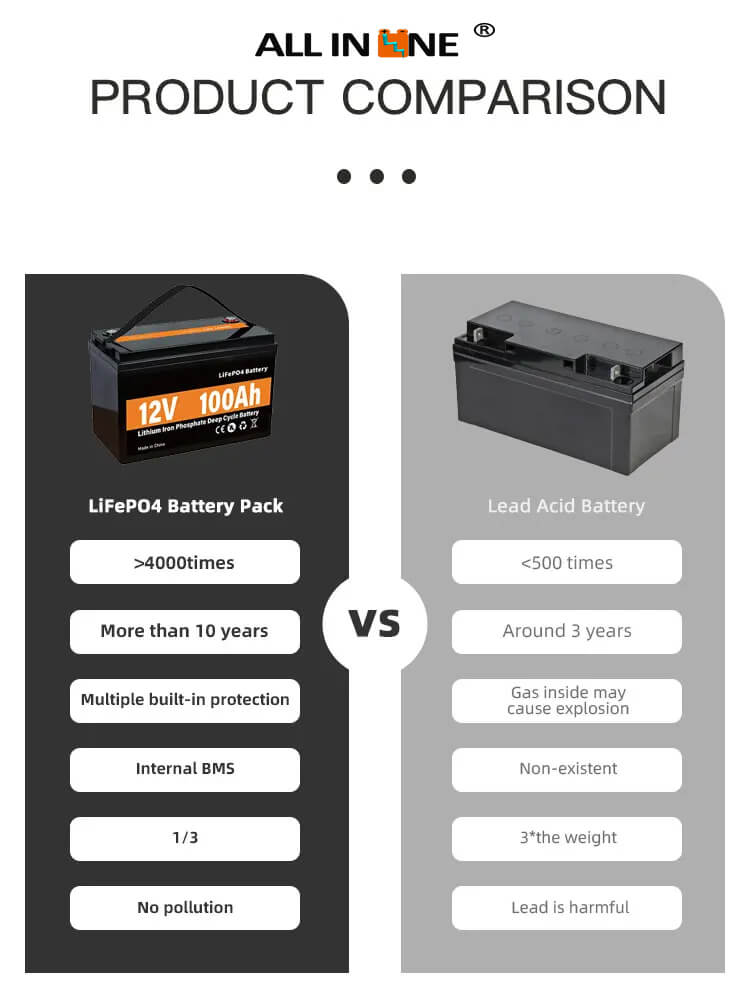

3. It replaces lead-acid batteries, which is 50% lighter
4.  Wide temperature operation
5.  Safe and reliable, no explosion
6.  Variety of protections, overcharge, overcharge, over current, over-temperature protection
7.  Easy operation, plug and play
8. More than 6000 cycle life

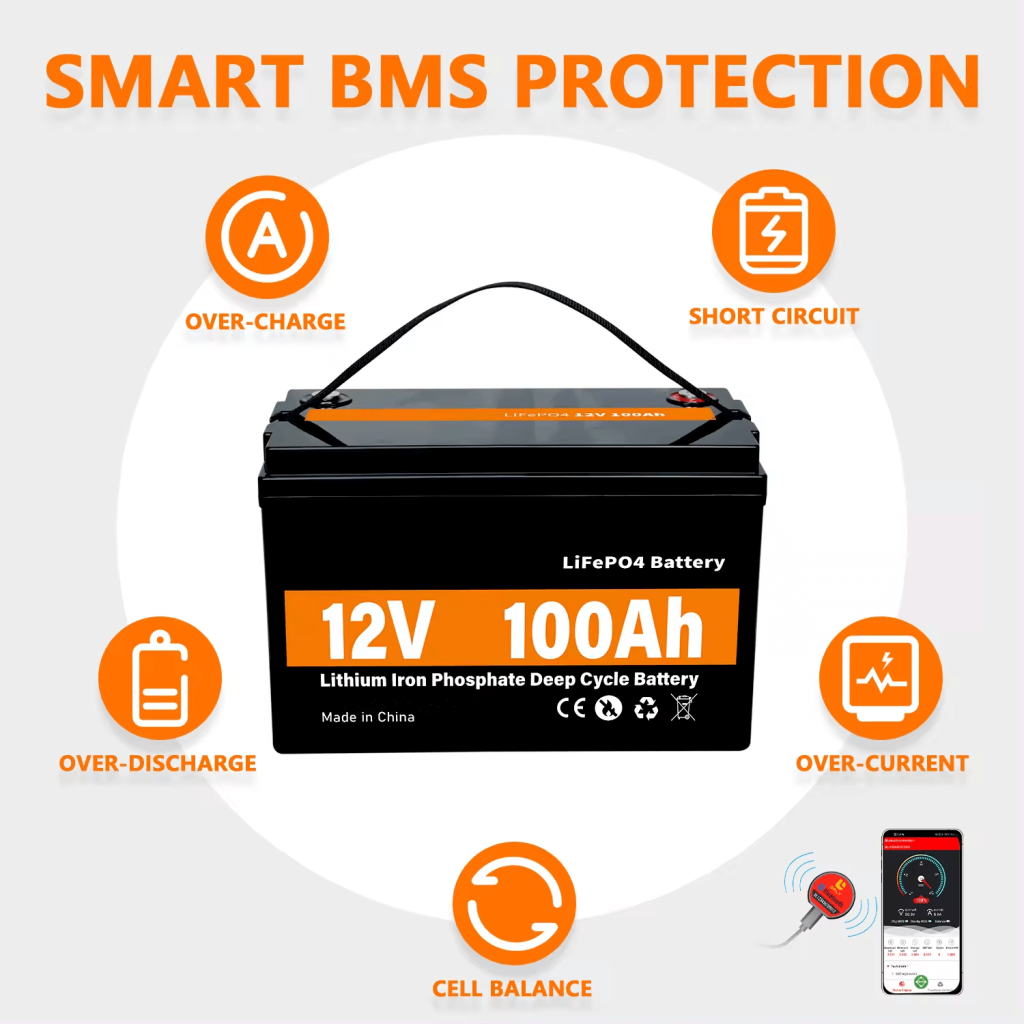

BMS-ning umumiy himoyasi o'rnatilgan
1.Har bir zaryadlangan himoya
2.Har bir zaryadsizlangan himoya
3.Termal himoya
4.Har bir yukni himoya qilish
5.Har bir joriy himoya

Ilova

LiFePO4 batareyasi uchun ilovalar
Widely used in RV, camping car, golfcart, sightseeing car, marine, yacht, solar backup etc.

Bizning fabrikamiz



Packing And Shipment



Tss

1.Q: Siz namunaviy buyurtmani qo'llab-quvvatlaysizmi?

Javob: Ha, namunaga buyurtma berish uchun xush kelibsiz, bizda Qo'shma Shtatlar va Evropada omborlarimiz bor, ba'zi namunalar tezda jo'natilishi mumkin.

2.Q: Mahsulot o'rnatilgan BMSga egami?

Javob: Ha, aqlli BMS, jumladan JBD/PACE/SmarTec o'rnatilgan batareyalar oqilona boshqarilishini ta'minlash uchun.

3.Q: Can your company accept customized order?

Javob: Albatta, xususiylashtirish bizning kuchimizdir.

4.Q: Batareya to'plami bozordagi invertorlar bilan mos kelishi mumkinmi?

Javob: Ha, ser, bizning paketlarimiz bozordagi 20 dan ortiq invertor brendlari, jumladan Victron, Goodwe, Solis, Growatts, Voltronics, Deye va boshqa mashhur brendlar bilan mos keladi.

5.Q: Kafolat qanday?

A: 5 years up-to its usage.

6.Q: Sizda sertifikatlar bormi?

A: CE, UN38.3 and MSDS, Pack UL1973.

7.Q: Yetkazib berish usuli va vaqti qanday?

A: Overseas warehouse (USA & Euro) will make quick delivery for small order. 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.Q: Sizda haqiqiy zavod bormi?

A: Yes, our factory is in Anhui Province. We welcome you to visit our factory.
