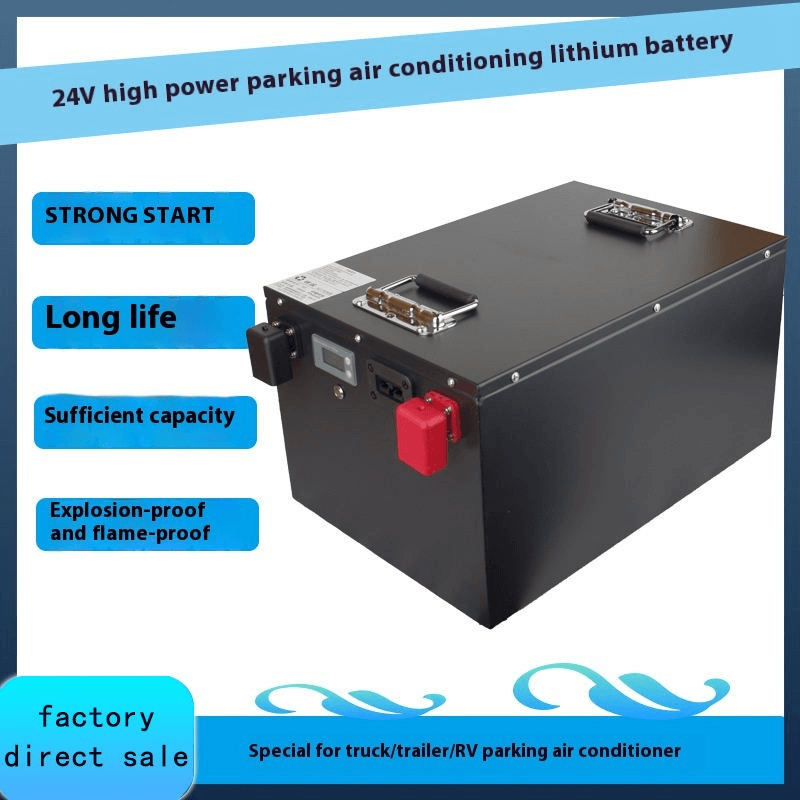

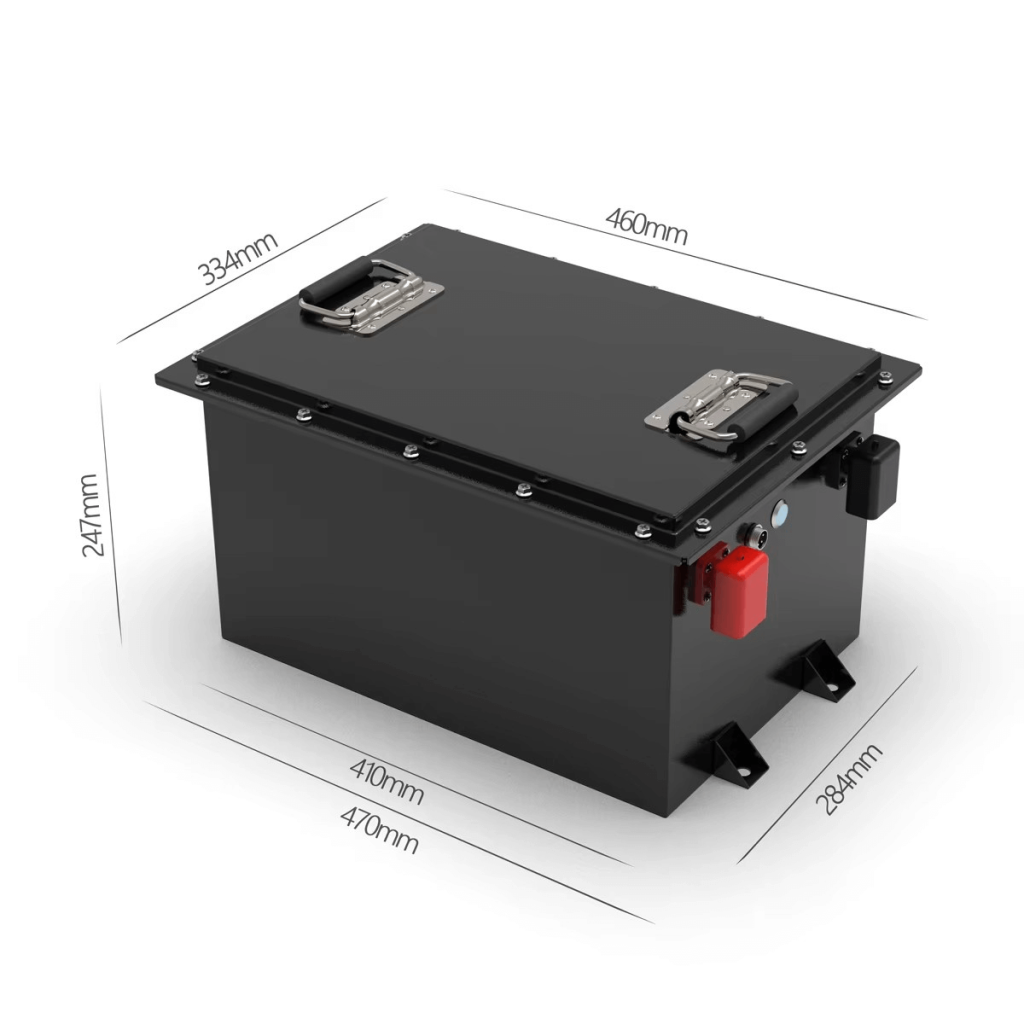

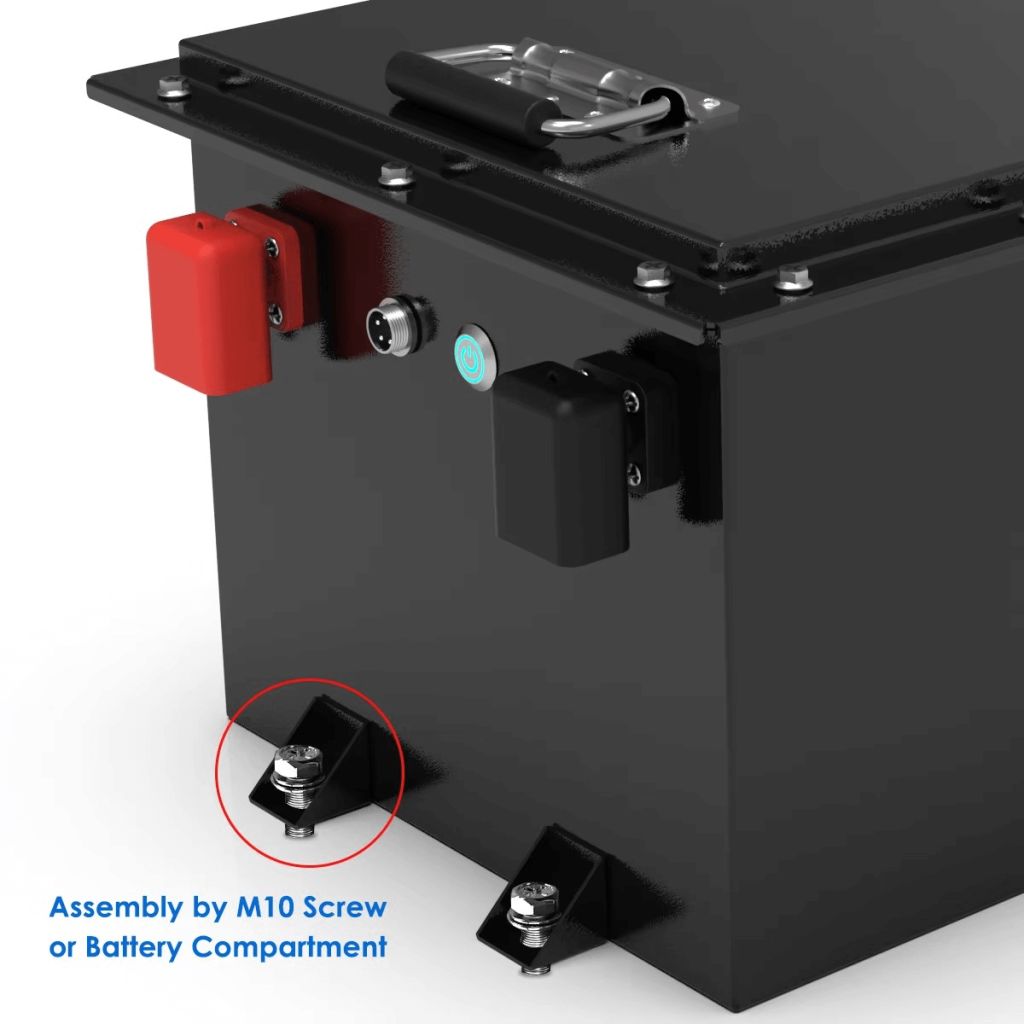

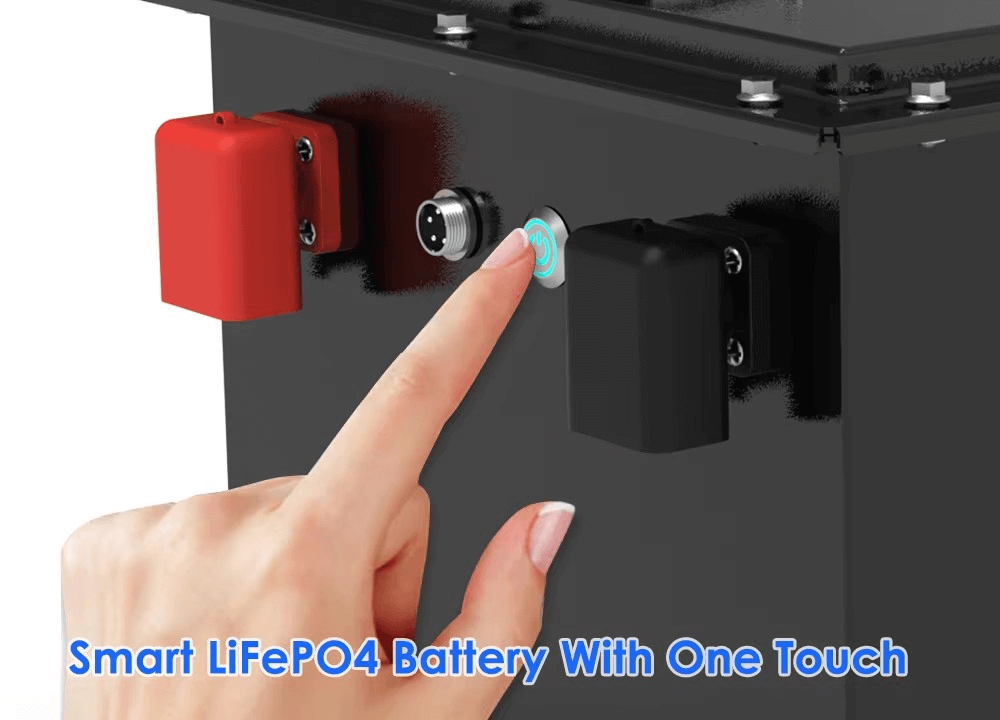

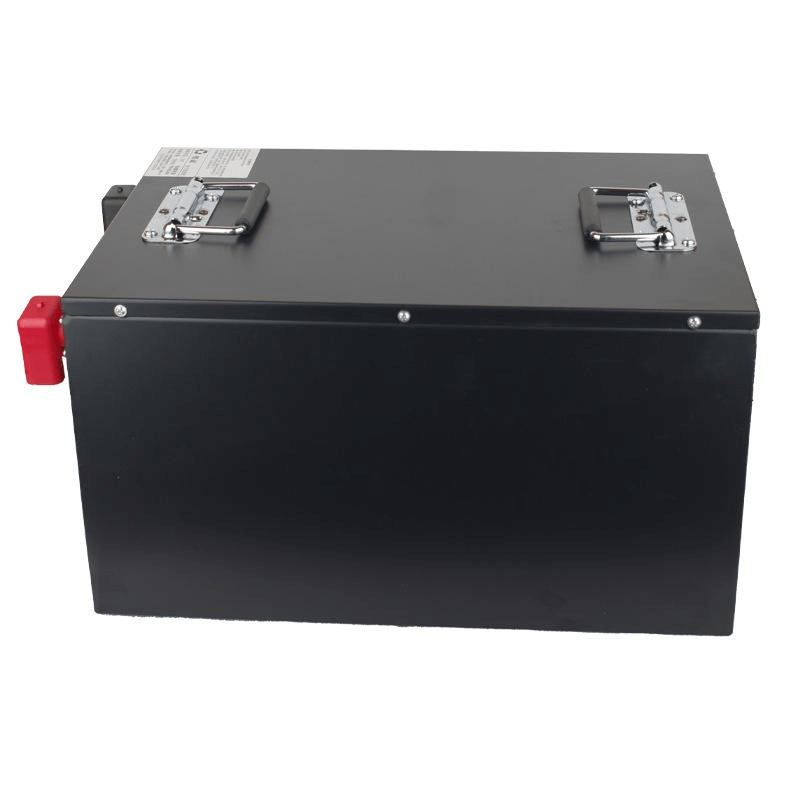

Lithium Ion Battery Pack 24V 200Ah Deep Cycle Factory Direct Sales LiFePO4 Product

2025-08-15 01:28

Mahsulotlar tavsifi

Loyiha	Parametrlar
Battareya turi	Lithium iron phosphate battery pack
Standard voltage	24V
Nominal sig'im	200Ah
Upper limit charging current	100A
Continuous discharge current	200A optional
Pulse discharge current	Instant 500A
Service life	500 martadan ko'proq
Over charge protection voltage	29.2V
Protection voltage	22.4V
Zaryadlovchi oqim	20A optional
Standard charging method	Constant current and constant voltage
Upper limit charging current	50A
Upper limit discharge current	200A
Discharge cut-off voltage	22.4V
Discharge temperature	-20-65 degrees
Zaryadlash vaqti	1-5 hours
Xususiyatlari	Software protection board communication protocol control, hardware protection board, sufficient capacity,precise matching,long service life, with balance and customizable
Himoya funktsiyasi	0vercharge protection, overdischarge protection, overcurrent protection, short-circuit protection and temperature protection

Bizning xizmatlarimiz va kuchimiz

1. Use 100% brand new grade A battery cells, cycle life up to [email protected]。
2. 5 years warranty (Included resend new one for battery broken before use or replacement BMS after use) 。
3. Factory directly supply, we have our own R&D department to support ODM and OEM services。

【A-grade battery】AIN LiFePO4 battery uses A-grade LiFePO4 cells, with higher energy density, more stable performance and more power. Perfect for solar home, RV, camper, solar, RV, off-grid applications .

【100% Safe】 100% safe, non-toxic, renewable energy. LiFepo4 battery will not burn in overcharge, overdischarge, overcurrent or short circuit, and can withstand high temperature without decomposition. Internal 200A BMS can handle battery balancing, low and high voltage cutoff, short circuit protection and temperature protection. No memory effect, no matter what state the battery is in, it can be used as long as it is fully charged.

【Lightweight and Versatile】Our 100Ah 48V Li-ion battery weighs only 1/3 of a lead-acid battery of the same capacity! Perfect for a
variety of backup power applications. And allows multiple parallel connections for more capacity

【Efficient and Convenient】AIN LiFePO4 batteries can be 100% discharged. In addition, AIN batteries have constant power when in use. More reliable and powerful.

【Best Service】AIN 6000+ cycle. 5 years battery warranty and lifetime technical support. If you have any questions, please feel free to contact us.



Bizning fabrikamiz

Tss

Q1: Can we put different LiFePO4 battery pack in parallel or series by ourself?

R: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;

• Make sure the voltage of each battery is the same before put in parallel. If they are not the same, charge them at the same rate.
• Don't put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
• Advise us of the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
• If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of the battery.

Q2: Can we put different LiFePO4 battery pack in series by ourself?

R: You can buy big voltage directly from us. We suggest do not out them in series by yourself, it will hurt the cycle life of the pack.

Q3: Does your battery pack include BMS? Can we use it for a car?

R: Yes, our battery pack includes BMS, you can use it for low-speed car only or aux. power for a standard car. Do not use it for the standard car directly, that will need more complex design BMS for the pack.

Q4: What is your warranty?

R: We offer 5 years warranty for all our battery packs. we ensure at least 6000 cycle life for the LiFePO4 battery pack, which means, after 6000@80% DOD, there will still around 60% capacity left. You can use it for at least 8-10 years for a normal 1-time charges and discharge every day.
