lithium iron phosphate battery for solar systems 48v solar lifepo4 lithium battery 48v 200ah 48v battery

2022-02-15 06:02

Texnik xususiyatlari

Model	2022-AIN48V50AH	2022-AIN48V100AH	2022-AIN48V150AH	2022-AIN48V200AH
Nominal kuchlanish (V)	48v	48v	48v	48v
Nominal sig'im (Ah)	50	100	150	200
Foydalanish hajmi (Kim)	2400	4800	7200	9600
O'lchov (mm)	442385132	442410220	442450250	442450280
Vazni (Kg)	29	44	68	91
Sikl hayoti	4000~6000 , 25℃	4000~6000 , 25℃	4000~6000 , 25℃	4000~6000 , 25℃
Communication Port	RS232 .RS485 .CAN RS232 .RS485 .CAN RS232 .RS485 .CAN
Zaryadlanish kuchlanishi (V)	53.2~54	53.2~54	53.2~54	53.2~54
Ichki empedans (mΩ)	≤50	≤50	≤50	≤50
Zaryadlash / tushirish oqimi (A)	10 (Recommended)	20 (Recommended)	30 (Recommended)	40 (Recommended)
Dizayn hayoti (yillar)	12	12	12	12

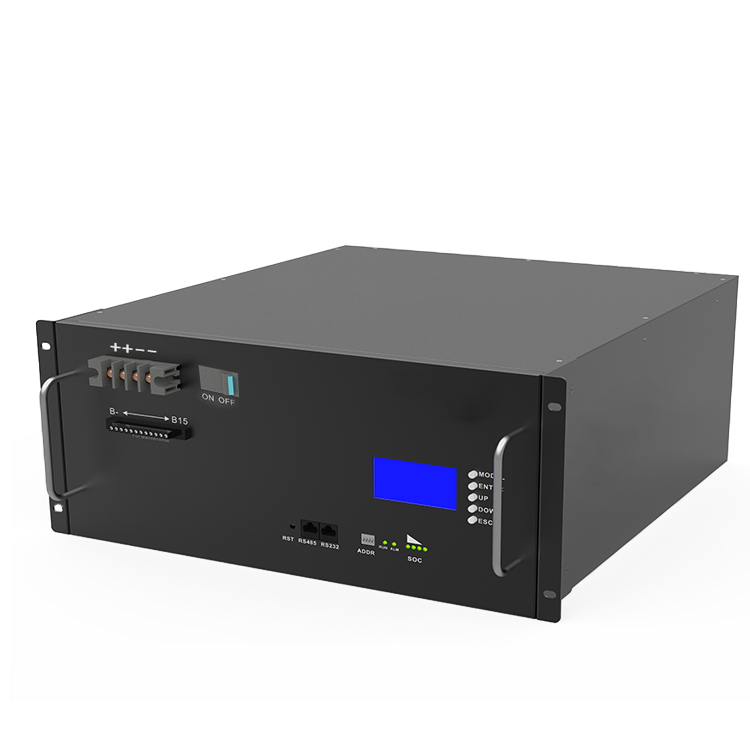

<div">Item	Ism	Definition
1	Negative socket	Battery output or parallel cathode line
2	LCD Monitor	Lcd display
3	Menu button
4	Positive socket	Battery output or parallel anode line
5	Quvvat tugmasi	OFF/ON, remains ‘ON’ when using
6	RESET
7	DIP
8	DRY
9	CAN/485	CAN/485 Communication Port communication (factory default CAN communication)
10	RS232	Multiple interfaces possible
11	RS485-2	Multiple interfaces possible
12	Quvvat
13	RUN	Green light, flashing when standby, always on when discharge, flash when charging
14	ALM	Red lights, flash when warning, always on when protection. When the condition of triggering protection is removed, the battery can
15	SOC	Green light, showing battery capacity

Xususiyat

1.Longer Cycle Life : Offers up to 20 times longer cycle life than lead acid battery. Over 2000 cycles, also the cell is able to deliver virtually full power, helps to minimize replacement cost and reduce total cost of ownership

2.Lighter Weight : About 40% of the weight of a comparable lead acid battery, easy to move and install. It is an ideal choice for outdoor camping power supply and simple indoor installation.

3. Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity

4. Wider Temperature Range : -20℃~65℃

5. Yuqori xavfsizlik: Lityum temir fosfat kimyosi yuqori zarba yoki qisqa tutashuv holati tufayli portlash yoki yonish xavfini yo'q qiladi.

6. BMS keng qamrovli himoyasi: Lityum batareyada o'rnatilgan batareyani boshqarish tizimi (BMS) mavjud bo'lib, uni haddan tashqari zaryaddan, chuqur tushirishdan, ortiqcha yuklanishdan, qizib ketishdan va qisqa tutashuvdan va o'z-o'zidan tushirish tezligidan himoya qila oladi.

7. Keng qo'llanma: RV, Karavan, Dengiz, Qayiq, Quruqlik, Zaxira quvvat manbai va O'chirilgan tarmoq ilovalari uchun javob beradi.

Bizning loyihalarimiz

Bizning fabrikamiz

Tss

1. Does the shipping way to our country include tax?
- Bu siz tanlagan mamlakatga va yuk tashish usuliga bog'liq. Aksariyat Osiyo mamlakatlari, aksariyat Yevropa davlatlari, Qo'shma Shtatlar va Kanadada soliqni o'z ichiga olgan yuk tashish kanallari mavjud.

2. Why the transportation time is so long and the tracking number not updated in nearly a month?
-Ma'lumki, batareya (ayniqsa, yuqori quvvatli akkumulyator)-maxsus tovar, tashish shartlari juda qattiq. Biz o'z mahsulotimizni DG logistika kanali orqali olib o'tamiz, bu oddiy logistikaga qaraganda sekinroq, chunki DG kema/poezd jadvalini kutishi kerak. Mahsulotning o'ziga xosligi va logistika tufayli, biz ko'rsatgan kuzatuv raqami tovar mamlakatingiz bojxonasidan o'tmasidan oldin yangilanmaydi. Xavotir olmang, sizning tovarlaringiz hali ham normal tranzitda. Tovarlar sizning mamlakatingiz bojxonasidan o'tganda, kuzatuv ma'lumotlari yangilanadi va siz uni 3-5 kun ichida olasiz.

3. Is this product safe?
-Haddan tashqari zaryad, ortiqcha zaryad, harorat, qisqa tutashuv, akupunktur va boshqa xavfsizlik sinovlaridan o'tdi, hech qanday holatda yong'in, portlash sodir bo'lmadi.

4. How to confirm the high quality of the product you sent me?
-Bizning batareyalarimiz A toifali, qancha buyurtma bersangiz ham, biz har bir mahsulotni jo'natishdan oldin sinovdan o'tkazamiz.

5. The battery is so heavy, will it damaged easily on the road?
-Bu ham biz uchun juda katta masala. Uzoq muddatli takomillashtirish va tekshirishdan so'ng, bizning qadoqlashimiz hozir juda xavfsiz va ishonchli. Paketni ochganingizda, albatta, samimiyligimizni his qilasiz.

6. Is it OK to print my logo on the product?
-Ha. Iltimos, bizni ishlab chiqarishdan oldin rasmiy ravishda xabardor qiling va birinchi navbatda namunamiz asosida dizaynni tasdiqlang.

Eslatma: Biz batareya ishlab chiqaruvchilarmiz. Barcha mahsulotlar chakana savdo -sotiqni qo'llab -quvvatlamaydi, biz faqat B2B biznesini qilamiz, mahsulot narxlari uchun biz bilan bog'laning!
