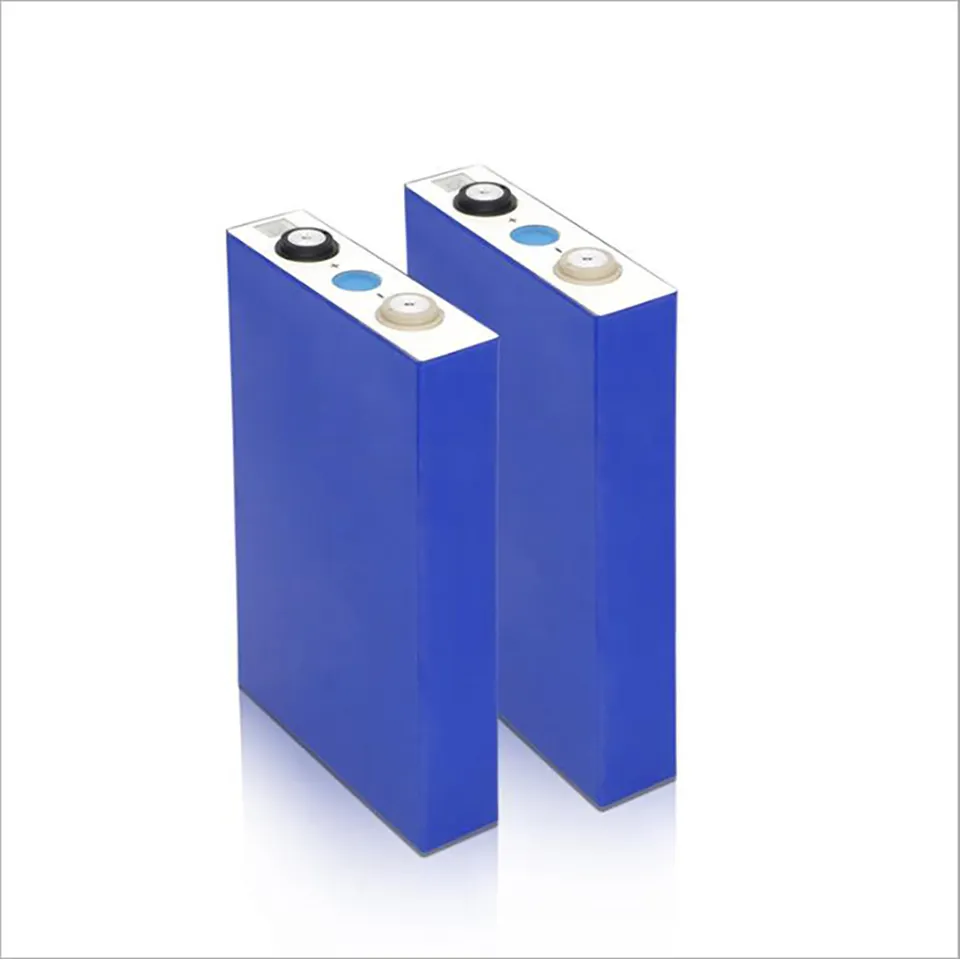

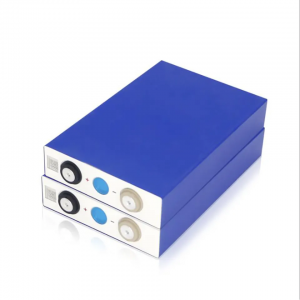

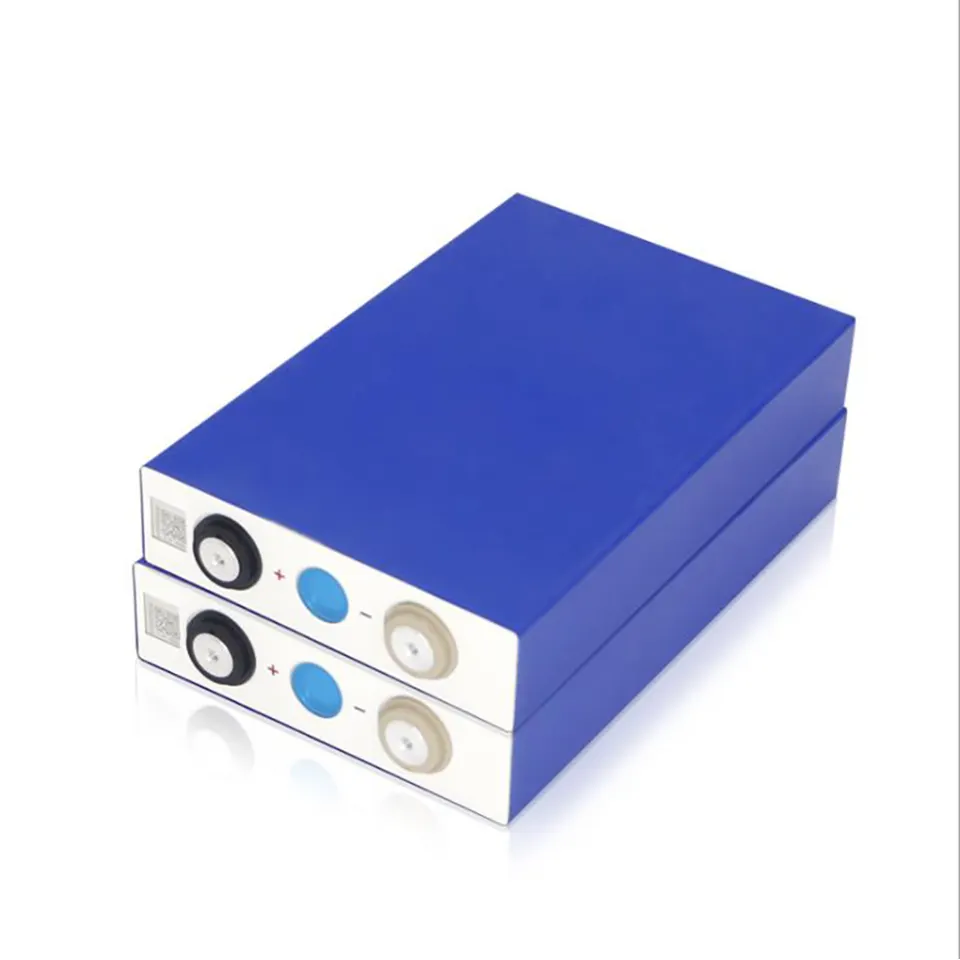

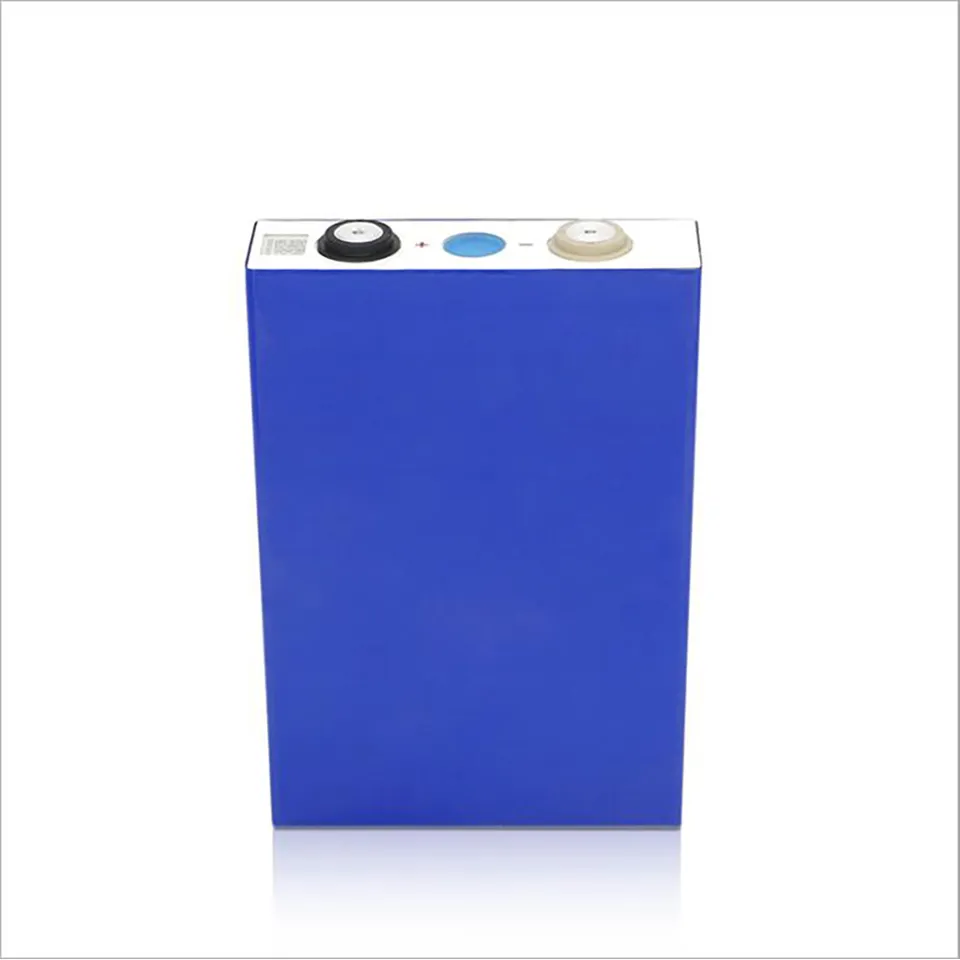

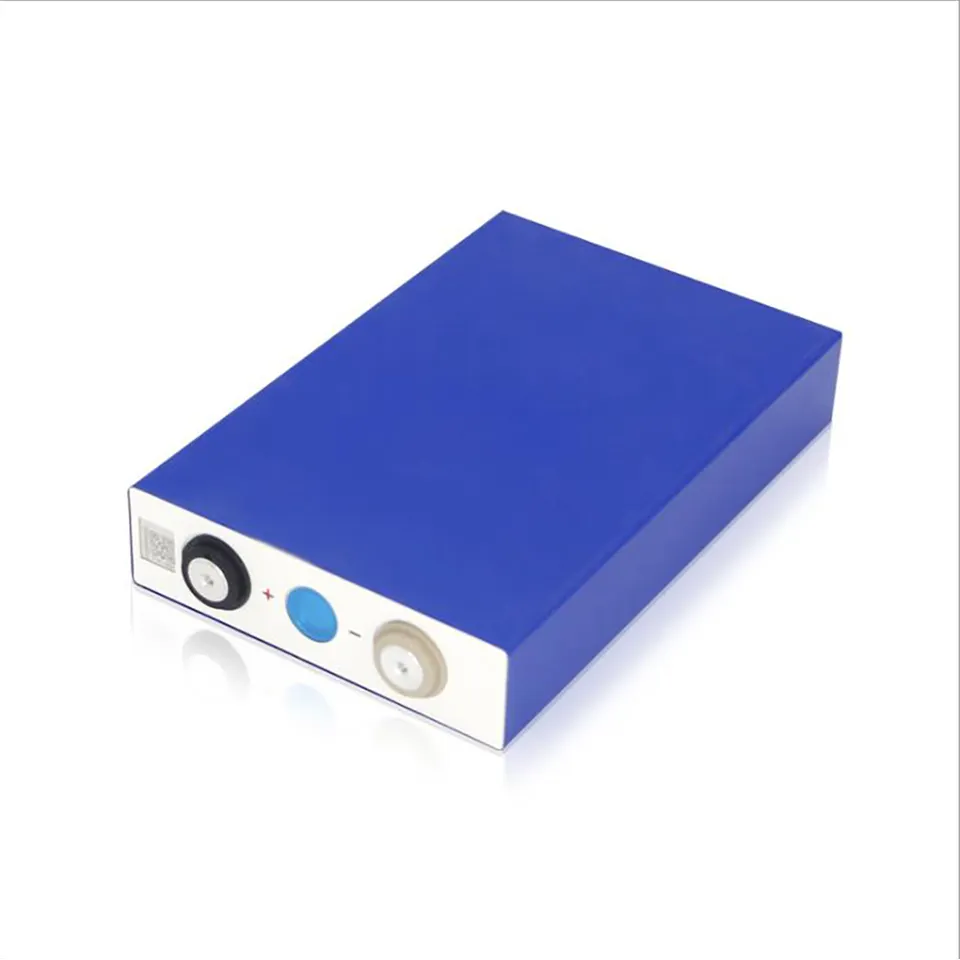

Prizmatik Lifepo4 batareyasi 3,2V 90Ah

2023-06-13 02:44

Texnik xususiyatlari

#	Mahsulot			Parametr	Izoh
1	Nominal sig'im			90Ah	(25±2)°C, Standard Charge And Discharge
2	Typical Voltage			3.2V
3	AC Impedance Resistance(1KHz)			≤0.5mΩ
4	Standard Charge And Discharge	Charge/Discharge Current		1C/1C	(25±2)°C
		Cut Off Voltage Of Charge/Discharge		3.65V/2.5V
5	Maximum Charge/Discharge Current	Continuous Charge/Discharge		1C/1C	According to continuous/ pulse charge and discharge ammeters
		Pulse Charge/Discharge(30s)		3C/3C
6	Recommended Scope Of SOC			10%~90%	N.A
7	Zaryadlash harorati			0°C~55°C	According to continuous/ pulse charge and discharge ammeters
8	Bo'shatish harorati			-20°C~55°C
9	Saqlash harorati		Short Term ( Within 1 month)	-20 ° C ~ 45 ° C	N.A
			Long Term ( Within 1 year)	0 ° C ~ 35 ° C
10	Storage Humidity Range			<95%
11	Self-discharge rate per month			≤3%/month	Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC
12	O'lchov		Kengligi	130.3±0.5mm	Refer to Appendix ǀ
13			Thickness( 30% SOC)	36,7 ± 0,5 mm
14			High( Total)	200,5 ± 0,5 mm
15			High（ Subject）	195,5 ± 0,5 mm
16			Tabs Distance	67,0 ± 1,0 mm
17	Batareya og'irligi			1994±50g

Attentions

• It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
• Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
• Do not short connect or install the battery with incorrect polarity at any time.
• Do not mix up with cells from different models or manufacturers.
• Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
• Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
• Please wear protective devices such as rubber gloves when operating the battery.

Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.

Ilova

Bizning fabrikamiz

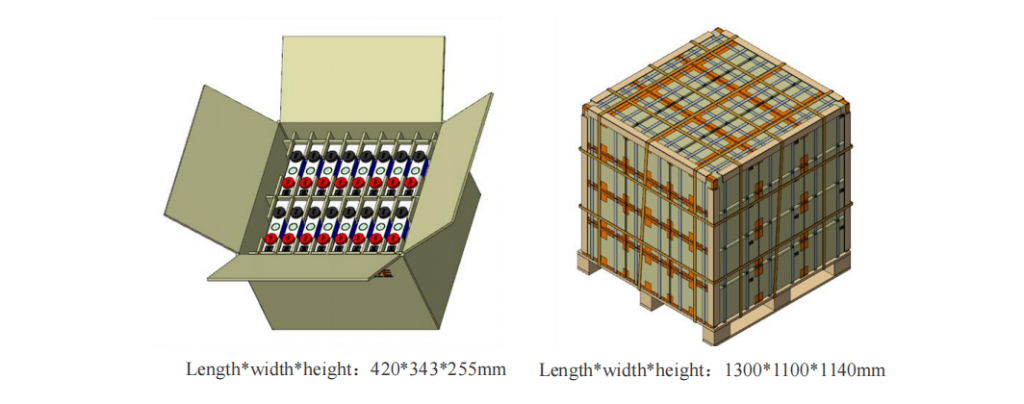

Paket va etkazib berish

The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.

Saqlash

Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ～ 50%SOC.

Tss

1-savol. Menga namunaviy buyurtma bera olasizmi?
A. Ha, sifatni tekshirish va tekshirish uchun namunaviy buyurtmani qabul qilamiz.

2-savol. Qo'rg'oshin vaqti haqida nima deyish mumkin?
A. Namuna 3 kun talab qilinadi, ommaviy ishlab chiqarish vaqti 5-7 haftani talab qiladi, bu buyurtma miqdoriga bog'liq.

3-savol. Sizda MOQ cheklovi bormi?
A. Ha, biz ommaviy ishlab chiqarish uchun MOQ bor, bu qismning turli raqamlariga bog'liq. 1 ~ 10pcs namunaviy buyurtma mavjud. Namunani tekshirish uchun past MOQ, 1pc mavjud.

4-savol. Siz mollarni qanday etkazib berasiz va u qancha vaqtni oladi?
A. Yetib kelish uchun odatda 5-7 kun ketadi. Aviakompaniya va dengiz transporti ham ixtiyoriydir.

5-savol. Buyurtmani qanday davom ettirish kerak?
A. Avvalo sizning talablaringiz yoki arizangiz haqida bizga xabar bering. Ikkinchidan, biz sizning talablaringiz yoki takliflarimizga binoan narxlar qo'yamiz. Uchinchidan, mijoz namunalarni tasdiqlaydi va rasmiy buyurtma uchun depozit qo'yadi. To'rtinchidan, biz ishlab chiqarishni tashkil qilamiz.

6-savol. Mening logotamni mahsulotga chop etish yaxshimi?
A. Ha. Iltimos, ishlab chiqarishdan oldin bizga rasmiy ravishda xabar bering va avval namunamizga asosan dizaynni tasdiqlang.

7-savol. Sizda qanday sertifikatlar mavjud?
Javob: Bizda CE / FCC / ROHS / UN38.3 / MSDS ... va hokazo.

8-savol. Kafolat qanday?
A: 3 yillik kafolat
