48v 100ah 200ah ulgurji uy gibrid quvvatli devorga o'rnatilgan qayta zaryadlanuvchi quyosh lityum lifepo4 batareya to'plami

2023-08-18 06:01

Texnik xususiyatlari

Model raqami	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
Kuchlanish	48/51.2V	48/51.2V	48/51.2V
Imkoniyatlar	100A	150Ah	200Ah
Energiya	5.12kwh	7.68kwh	10.24kwh

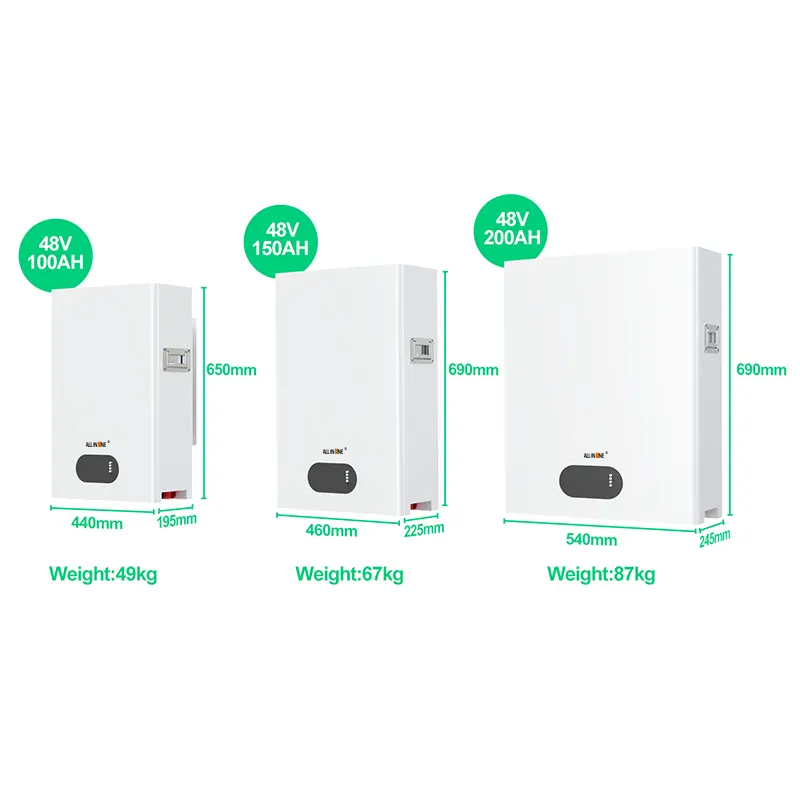

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
Og'irligi	49 kg	67kg	87kg
Asosiy parametrlar
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
Ishlash harorati	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
Saqlash harorati	0°C dan 45°C gacha @60+/-25% nisbiy namlik	0°C dan 45°C gacha @60+/-25% nisbiy namlik	0°C dan 45°C gacha @60+/-25% nisbiy namlik
Lityum batareya standarti	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
Maksimal quvvat	5120 Vt	7680 Vt	10240 Vt

Bizning fabrikamiz

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

Tss

Savol: Siz savdo shirkati yoki ishlab chiqaruvchisiz?
A: We are ALL IN ONE original factory.

Savol: Sinab ko'rish uchun namunalar olsam bo'ladimi? Namuna buyurtmasi uchun qo'rg'oshin vaqti nima?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

Savol: Siz sotishdan keyingi xizmat ko'rsatasizmi?
Javob: Ha, kafolat muddati 12 oy, agar ushbu davrda biron bir sifat muammosi bo'lsa, biz yangisini almashtirish sifatida yuboramiz.

Savol: OEM / ODM ni qabul qilasizmi?
Javob: Ha, u mavjud.

Savol: Siz batareyaning haqiqiy sig'imisiz?
Javob: A darajali, 100% yangi va haqiqiy sig'imga ega barcha batareyalarimiz.

Savol: Sizda qanday sertifikatlar mavjud?
Javob: Agar buyurtma miqdori katta bo'lsa, biz CE, ROHS, FCC, IEC62133, MSDS, UN38.3-ni taqdim eta olamiz.

Savol: Sizda MOQ bormi?
Javob: Cheklanmagan. Kichik buyurtma ham xush kelibsiz. Ko'proq narx yaxshiroq narxga ega, biz siz uchun eng yaxshi narxni tekshiramiz.

Savol: To'lov muddati qanday?
Javob: Biz T / T, Paypal, Alibaba to'lov usulini va boshqalarni qabul qilamiz.

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
