Golf aravachasi RV kamper uchun moslashtirilgan chuqur tsiklli 36V 48V 72V 50ah 80ah 100ah lityum batareya

2024-03-15 02:39

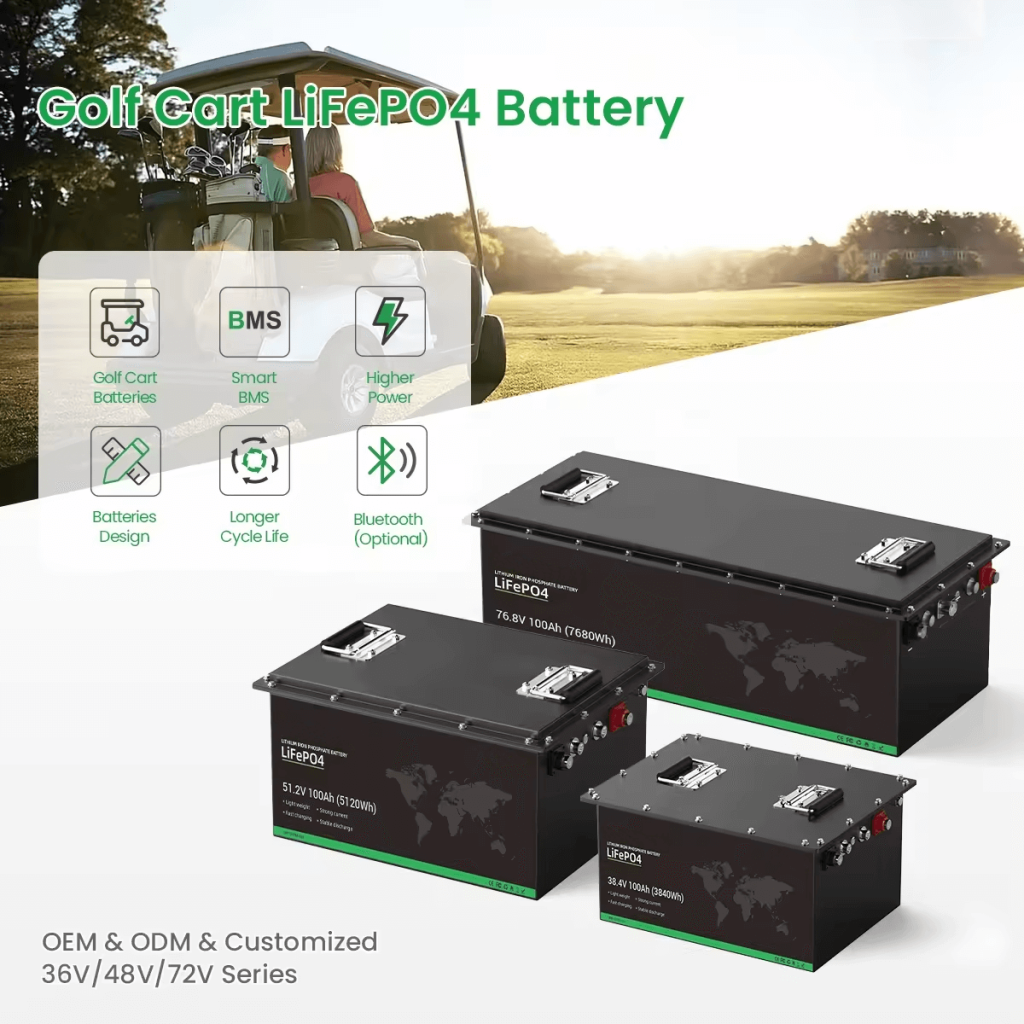

LiFePO4 Battery for Golf Cart ( OEM/ODM ) TECHNICAL SPECIFICATION
Data sheet	Nominal kuchlanish	Nominal sig'im	Nominal Energy	O'lchov	Og'irligi
36V  (Support Customized Capacity/Size)
LFP36-50	38.4V	50A	1920 soat	522*238*218mm	≈18.5kg
LFP36-60	38.4V	60Ah	2304 Vt	522*238*218mm	≈21kg
LFP36-80	38.4V	80Ah	3072Wh	522*238*218mm	≈25.5kg
LFP36-100	38.4V	100A	3840 soat	522*238*218mm	≈31kg
48V  (Support Customized Capacity/Size)
LFP48-50	51.2V	50A	2560 soat	522*238*218mm	≈25kg
LFP48-60	51.2V	60Ah	3072Wh	522*238*218mm	≈31kg
LFP48-80	51.2V	80Ah	4096Wh	522*238*218mm	≈32.5kg

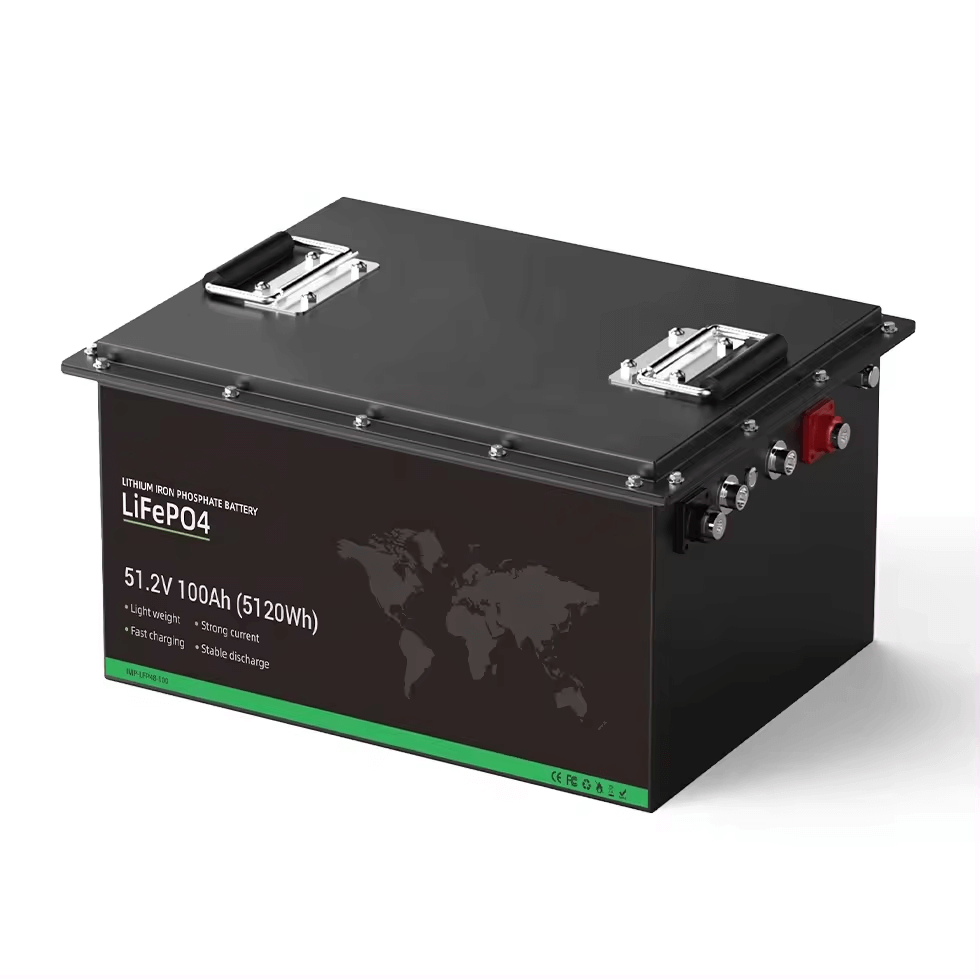

LFP48-100	51.2V	100A	5120 soat	640*245*220mm	≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-50	76.8V	50A	3840 soat	470*330*150mm	≈50kg

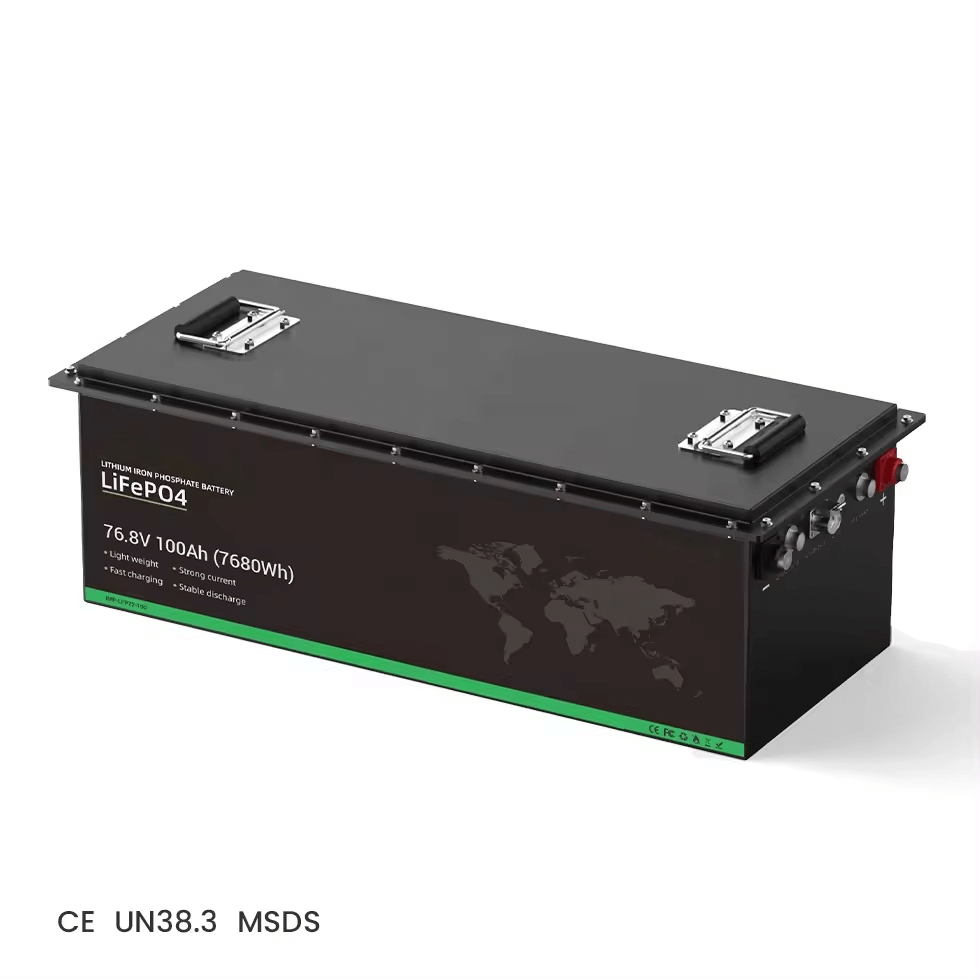

LFP72-100	76.8V	100A	7680 Vt	730*350*150mm	≈65kg
General
Hayot davrlari		≥6000 cycles (80%DOD), at 25°C
Zaryadlash harorati		0 ~ 45°C (32 ~ 113°F)
Bo'shatish harorati		-20 ~ 55°C(-4 ~ 131F)
Saqlash harorati		-10 ~ 45°C(14 ~ 113°F)
Communication Mod		Vehicle CAN/ Charge CAN/ Intranet CAN/ 485 communication/ Wireless communication

The Right Choice

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

Ishlash

1. Single battery operation
2. Little or no voltage drop
3. Fast travel speed at all levels of discharge

ALL IN ONE Battery Safety and Sustainability

1. No acid fumes or spills
2. Reduce use of electricity
3. Less waste
4. 99% recyclable

Ilova

Bizning fabrikamiz



Yuk tashish va qadoqlash

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. Katta buyurtma uchun AIR yoki OCEAN kemasi.

Tss

Savol: Siz savdo shirkati yoki ishlab chiqaruvchisiz?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

Savol: Sinab ko'rish uchun namunalar olsam bo'ladimi? Namuna buyurtmasi uchun qo'rg'oshin vaqti nima?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

Savol: OEM / ODM ni qabul qilasizmi?
A: Yes,it is available.We have OEM group to design battery case.

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
Javob: HA, ilova istalgan vaqtda har birining kuchlanishini o'qish imkonini beradi.

Savol: Siz batareyaning haqiqiy sig'imisiz?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

Savol: Sizda qanday sertifikatlar mavjud?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

Savol: Sizda MOQ bormi?
Javob: Cheklanmagan. Kichik buyurtma ham xush kelibsiz. Ko'proq narx yaxshiroq narxga ega, biz siz uchun eng yaxshi narxni tekshiramiz.

Savol: To'lov muddati qanday?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
Javob: Batareyani uyg'otish uchun lityum zaryadlovchilardan foydalanish. Lityum zaryadlovchi batareyalarni avtomatik ravishda uyg'otadi.
