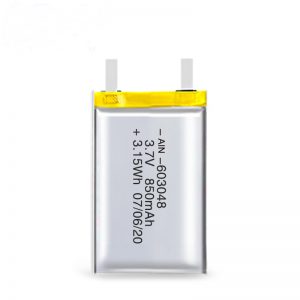

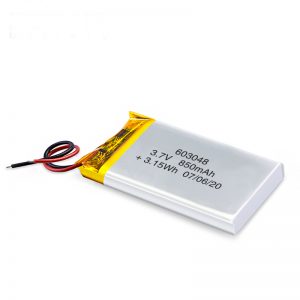

LiPO qayta zaryadlanuvchi batareya 603048 3.7V 850mAh / 3.7V 1700mAH / 7.4V 850mAH

2020-08-10 10:47

Mahsulot			Baho	Eslatma
3.1 Imkoniyatlar		Odatda	880mAh	Bo'shatish: 0.2CmA kesilgan kuchlanish: hujayra uchun 3.0V
		Eng kam	850mAh
3.2 Nominal kuchlanish			O'rtacha 3.7V	Bo'shatish: 0.2CmA kesilgan kuchlanish: hujayra uchun 3.0V
3.3 AC qarshiligi			80180mΩ
3.4 Zaryadsizlanishni o'chirish voltaji			3.00V
3.5 Zaryadlovchi oqimi			190mA	Standart zaryad
3.6 Zaryadlash voltaji			4.2V
3.7 Maks. Zaryadlash voltaji			4.23V
3.8 zaryadlash vaqti			Taxminan 2,5 soat	Zaryad: 1.0CmA
3.9 Maks. Zaryadlash oqimi			900mA	1.0CmA
3.10 Maks. Bo'shatish oqimi			900mA
3.11 Og'irligi			Taxminan 16.1g
3.12 ishlamoqda Harorat	Zaryadlash		0 ~ + 45 ° C
	Bo'shatish		-20 ~ + 60 ° C
3.13 Saqlash Harorat	1 oydan kam		-20 ~ + 45 ° C	Tavsiya etilgan saqlash joyi harorat: 20 ° C, darajasida jo'natish holati
	3 oydan kam		-20 ~ + 35 ° C

Boshqa o'lchamdagi lipo batareyasi hozirda mavjud.

Model	O'lchov	PCM o'lchamlari bilan	Imkoniyatlar
302025	3.0 * 20 * 25mm	3.2 * 21 * 27.5mm	3,7V 100mAh
302530	3.0 * 25 * 30mm	3.2 * 26 * 32.5mm	3.7V 180mAh
401824	4.0 * 18 * 24mm	4.2 * 19 * 26.5mm	3.7V 180mAh
402525	4.0 * 25 * 25mm	4.2 * 26 * 27.5mm	3.7V 200mAh
483450	4.8 * 34 * 50mm	5.0 * 35 * 52.5mm	3.7V 850mAh
502030	5.0 * 20 * 30mm	5.2 * 21 * 32.5mm	3.7V 240mAh
502525	5.0 * 25 * 25mm	5.2 * 26 * 27.5mm	3.7V 180mAh
503030	5.0 * 30 * 30mm	5.2 * 31 * 32.5mm	3.7V 430mAh
523450	5.2 * 34 * 50mm	5.4 * 35 * 52.5mm	3.7V 1000mAh
553444	5.5 * 34 * 44mm	5.7 * 35 * 46.5mm	3.7V 850mAh
553640	5.5 * 36 * 40mm	5.7 * 37 * 42.5mm	3.7V 850mAh
553759	5.5 * 37 * 59mm	5.7 * 38 * 61.5mm	3.7V 1400mAh
602030	6.0 * 20 * 30mm	6.2 * 21 * 32.5mm	3.7V 300mAh
602240	6.0 * 22 * 40mm	6.2 * 23 * 42.5mm	3.7V 500mAh
602535	6.0 * 25 * 35mm	6.2 * 26 * 37.5mm	3.7V 500mAh
602663	6.0 * 26 * 63mm	6.2 * 27 * 65.5mm	3.7V 1000mAh
603030	6.0 * 30 * 30mm	6.2 * 31 * 32.5mm	3.7V 520mAh
603040	6.0 * 30 * 40mm	6.2 * 31 * 42.5mm	3.7V 750mAh
603048	6.0 * 30 * 48mm	6.2 * 31 * 50.5mm	3.7V 900mAh
603450	6.0 * 34 * 50mm	6.2 * 35 * 52.5mm	3.7v 1050mAh
702040	7.0 * 21 * 40mm	7.2 * 22 * 42.5mm	3.7V 500mAh
753048	7.5 * 30 * 48mm	7.7 * 31 * 50.5mm	3.7V 1200mAh
803035	8.0 * 30 * 35mm	8.2 * 31 * 37.5mm	3.7V 800mAh

Afzalliklari

1. Yuqori energiya zichligi: energiya zichligi 460Wh / l bo'lishi mumkin
2. Zo'r xavfsizlik: yong'in yo'q, qisqa tutashuv, haddan tashqari zaryad, haddan tashqari zaryadlash, haddan tashqari oqim, zarba, tebranish, maydalash, akupunktur.
3. Uzoq tsiklning umr ko'rish muddati: 500 tsikldan keyin quvvatni tiklash 80% dan yuqori bo'lishi mumkin
4. Yuqori zaryadli kuchlanish platosi: 3.6V zaryadsizlanish kuchlanish platosi 42min dan oshadi
5. Ekologik toza: PB yo'q, CD qo'shilmagan
6. Turli xil sohalarga qarab moslashuvchan o'lchamdagi dizayn
7. 10mAh-1000mAh mikro o'lchamdagi yuzlab qoliplar
8. Idoralar / RoHS ko'rsatmalariga muvofiq / REACH / UL / MSDS / UN38.3 / IEC61233.

Ilova

Aloqa uskunalari: mobil telefonlar, PHS telefonlari, Bluetooth uyali telefonlar, walkie-talkie
Axborot jihozlari: noutbuklar, PDA, ko'chma faks mashinalari, printerlar
Audio-vizual uskunalar: raqamli kameralar, videokameralar, portativ DVD, VCD pleerlari
Boshqalar: elektr velosipedlar, konchilar chiroqi
Bizda MP3, MP4 pleyerlar, Bluetooth, GPS, raqamli telefon, PDA uchun litiy-polimer qayta zaryadlanuvchi batareyalar mavjud, sizning qiziqishingiz bo'lsa, sizning so'rovingiz yuqori baholanadi

Eslatma: Biz batareya ishlab chiqaruvchilarmiz. Barcha mahsulotlar chakana savdo -sotiqni qo'llab -quvvatlamaydi, biz faqat B2B biznesini qilamiz, mahsulot narxlari uchun biz bilan bog'laning!

Toifalar: Oddiy o'lchamdagi LiPO batareyasi
